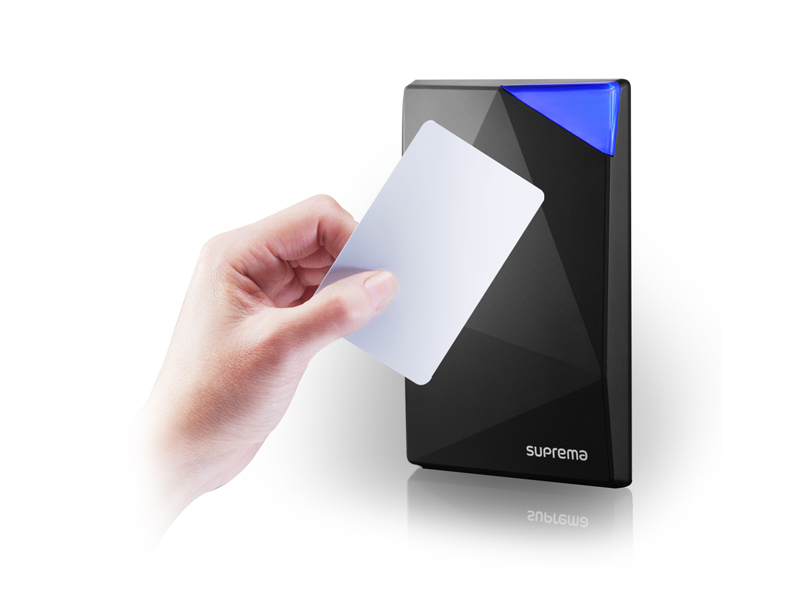

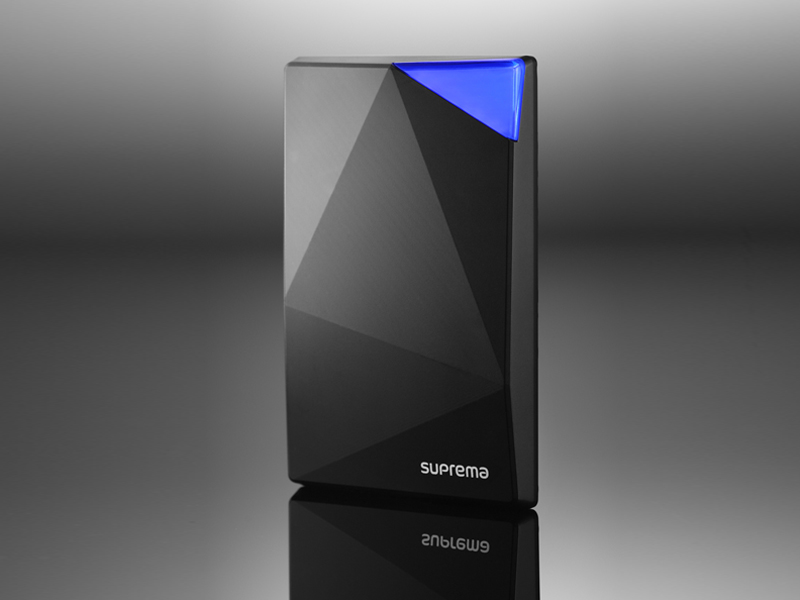

Xpass S2

Xpass S2 is a multi-smartcard device containing advanced features of a high-end IP access control device making it versatile and powerful. It features an IP65 ingress protection rating and a wide operational temperature range (-35°C - 65°C) perfect for outdoor environments. Xpass S2 has an aesthetically pleasing ultra slim design and has been designed to mount easily on US, EU and Asian gang boxes. Device supports additional RS485 and Wiegand interfaces for flexible integration with 3rd party systems.

Features

  • True environment adaptability
    • IP65 ingress protection certified
    • Dust and waterproof features for adapt to outdoor installations
    • Integrated temperature adaptive heater to combat cold environments
    • Operational temperature range from -35°C to 65°C
  • Versatile interface support
    • TCP/IP, RS485, Wiegand interface
  • Large device memory for enterprise level access control applications
    • Supports up to 50,000 users and 100,000 logs
    • Supports up to 128 user groups and 64 zones
  • Extensive Multi-smartcard support
    • MiFare, DESFire, ISO14443A/B, ISO15693, FeliCa, NFC
  • Minimalistic Ultra slim design
    • Designed to fit standard US/EU/ASIA gang box
    • Profile that is only 11.4mm thick to create a slim aesthetic look
  • Easier Installation and operation
    • Simple wiring due to usage of TCP/IP based distributed system
    • Embedded controller capabilities for locks and sub-devices using relays and Wiegand
    • Command card support for on-device user enrollment

Configuration

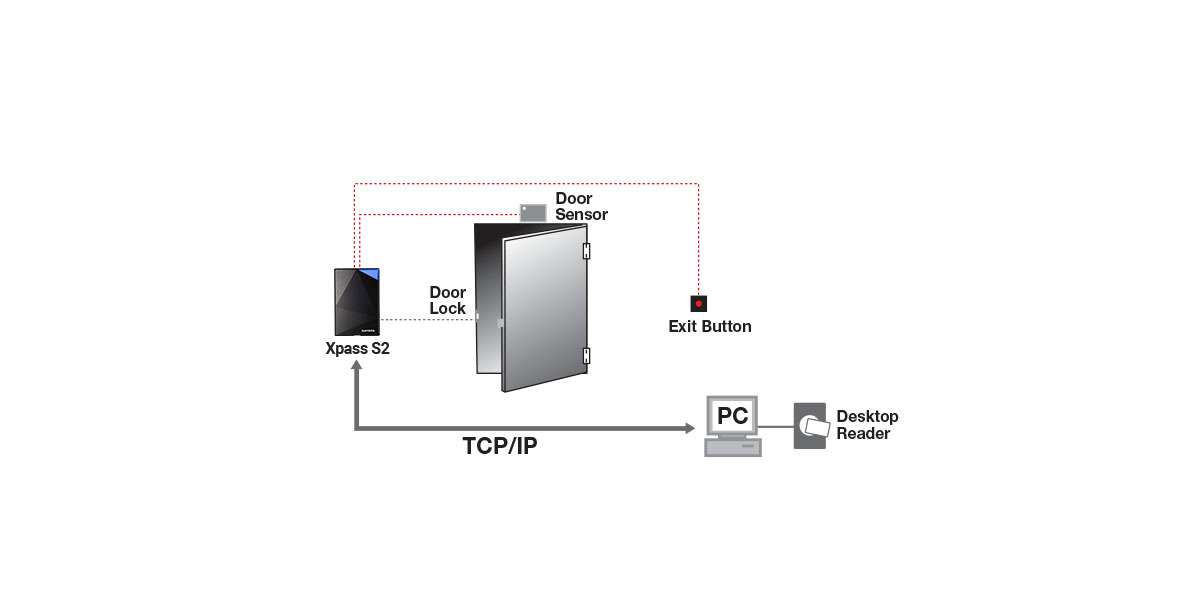

Standalone

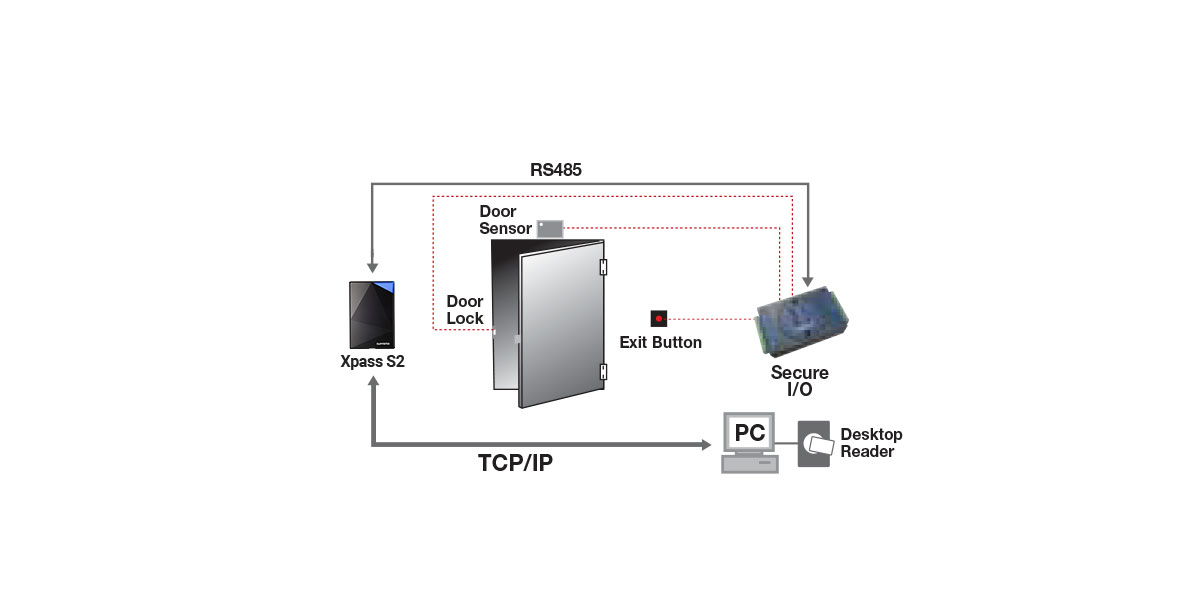

Standalone-Secure

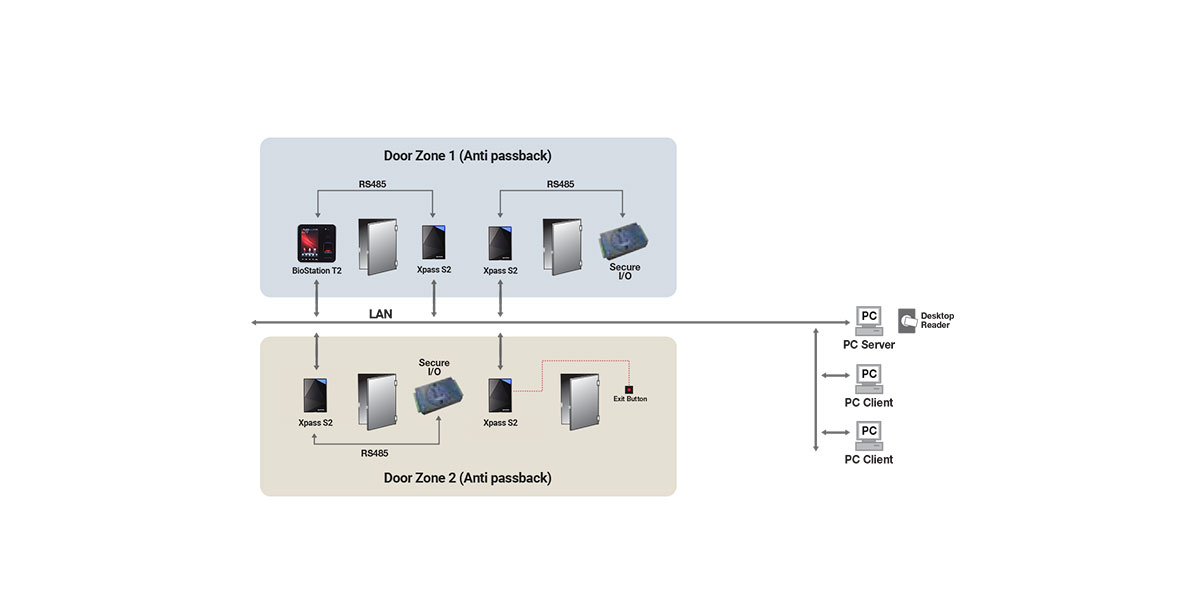

Distributed Access Control Systems

Specification

Model Name XPS2M
RFID RF Option 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1 (CSN), FeliCa
Mobile Card Not supported
Protections Ingress Protection IP65
Vandal Proof Not supported
Capacity (RFID) Users (1:1) 50,000
Users (1:N) 50,000
Templates (1:1) Not supported
Templates (1:N) Not supported
Text Log 100,000
Image Log Not supported
HW CPU 533MHz DSP
Memory 16MB RAM + 16MB Flash
LCD Type Not supported
LED Multiple colors
Sound Multi-tone Buzzer
Operating Temperature -35°C ~ 65°C
Storage Temperature -40°C ~ 70°C
Operating Humidity 0% ~ 80%, non-condensing
Storage Humidity 0% ~ 90%, non-condensing
Weight Device: 107g, Bracket: 43g (including washers and bolts)
Dimension (WxHxD, mm) 80 x 120 x 11.4
Tamper Supported
Interface Wi-Fi Not supported
Ethernet 10/100 Mbps, auto MDI/MDI-X
RS-485 1ch Host or Slave (Selectable)
Wiegand 1ch In or 1ch Out (Selectable)
TTL Input 2 Inputs
Relay 1 Relay
USB Not supported
SD Card Not supported
PoE Not supported
Intercom Not supported
Electrical Power 12VDC
