X-Station

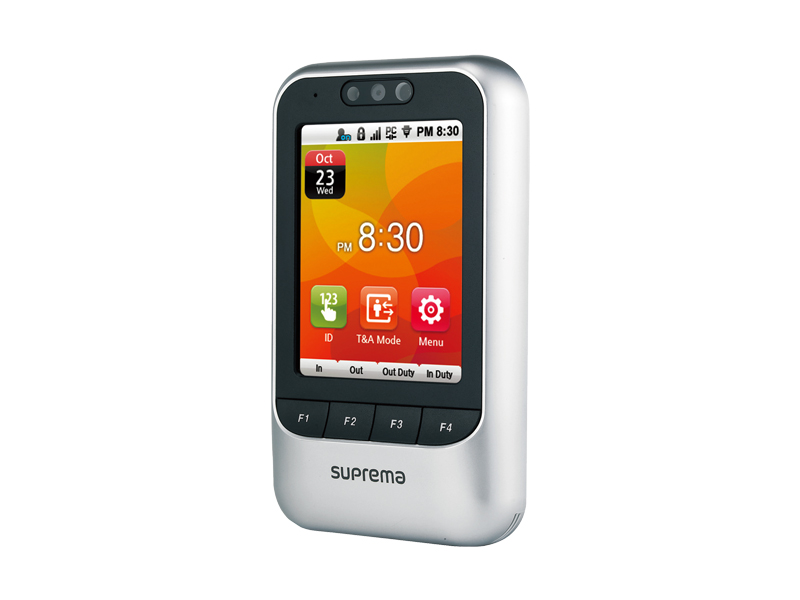

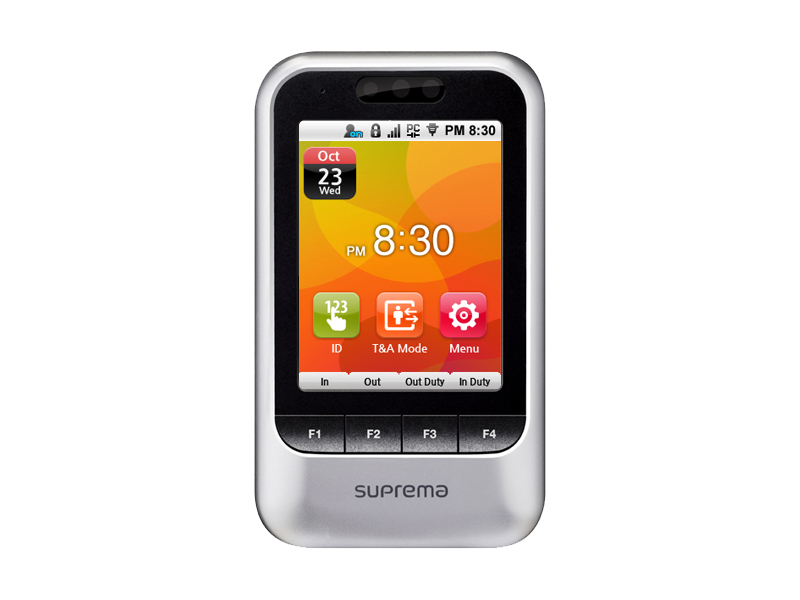

Suprema X-Station is an evolution of access control card reader. In its ultra slim and sleek design, X-Station features a variety of functions including RF card and PIN authentication, TCP/IP interface and comprehensive time and attendance features. With a 3.5 inch touchscreen LCD and intuitive GUI, X-Station provides exceptional usability for both users and system administrators. Featuring face detection technology with a built-in camera, X-Station can record up to 5,000 face image logs for extra level of security and attendance records.

Features
  • 3.5-inch Touchscreen LCD
    Intuitively designed GUI to provide enhanced usability for users and administrators
  • Face Detection Technology with Built-in Camera
    Features face detection technology to record face image logs to prevent buddy punching
  • Time and Attendance Hot Keys
    4 separate configurable function keys for T&A events like in/out and duty in/out events to offer quick and easy attendance check
  • Powerful 667 MHz Processor
    667 MHz processor to allow fast and seamless device operation and processing
  • TCP/IP Network Interfaces
    IP-based system topology to provide extra flexibility in system design and reduce cost on installation and maintenance
  • Intelligence at Doors
    Internal CPU and various interfaces to provide both access reader and controller functionalities in a single device
Configuration

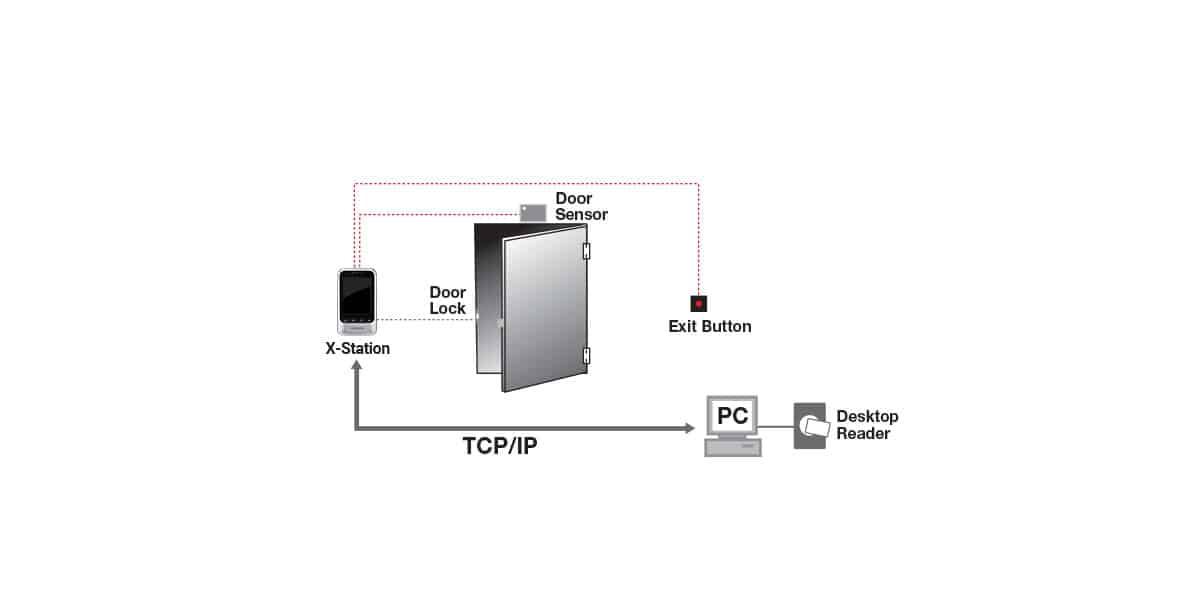

Standalone

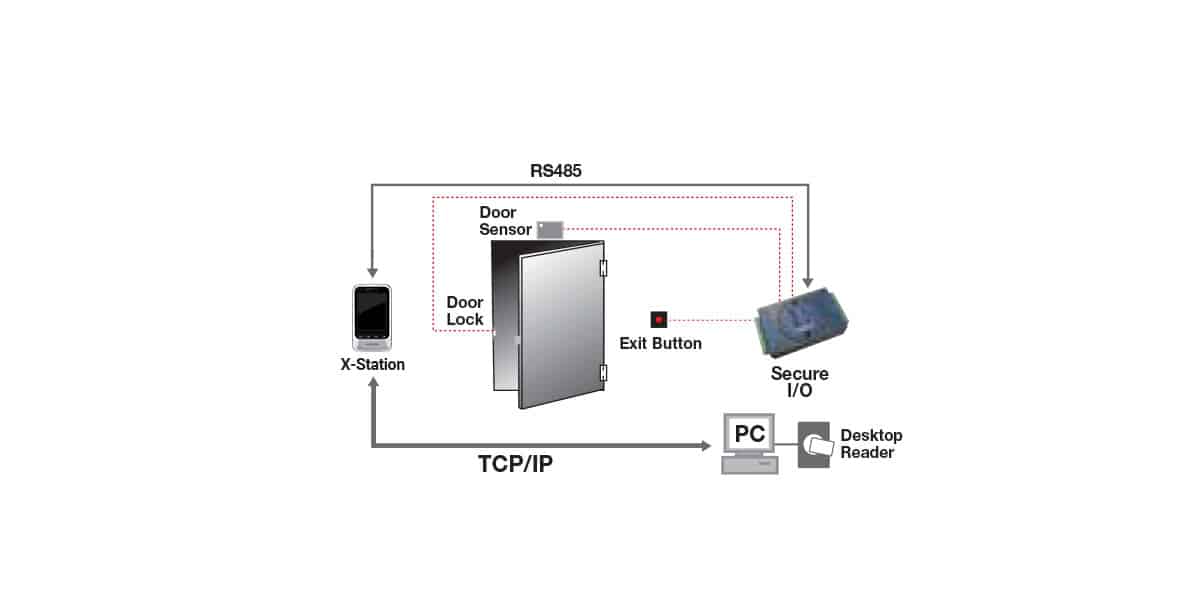

Standalone Secure

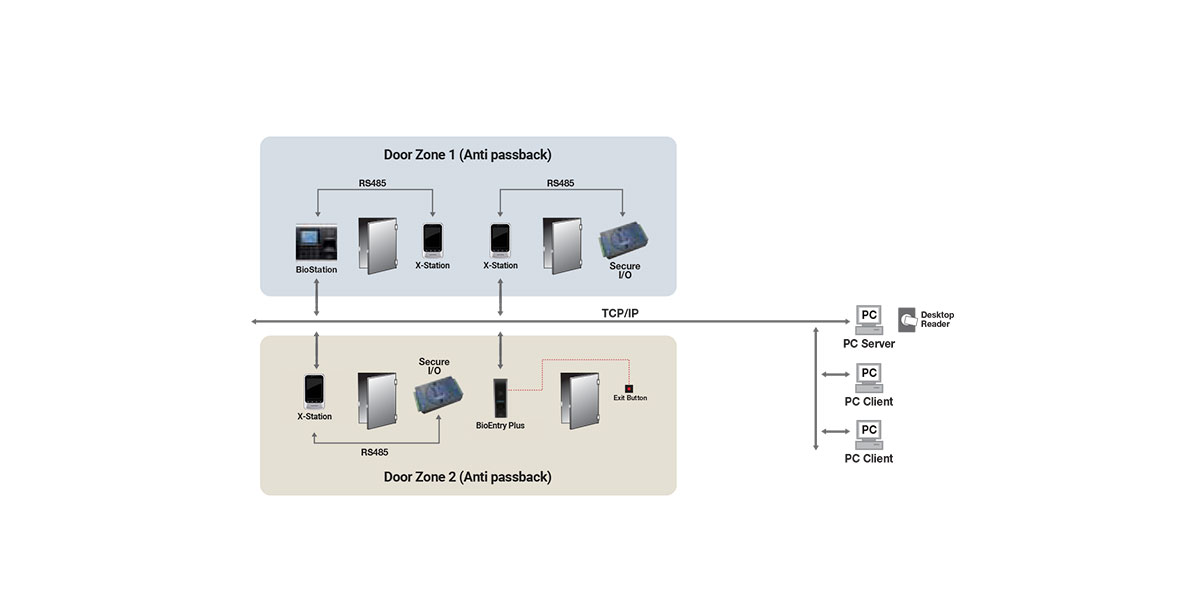

Distributed Access Control Systems

Specification
Model Name XSE XSM
RFID RF Option 125kHz EM 13.56MHz MIFARE MIFARE Plus, DESFire/EV1 (CSN)
Mobile Card Not supported Not supported
Protections Ingress Protection Not supported Not supported
Vandal Proof Not supported Not supported
Capacity (RFID) Users (1:1) 200,000 200,000
Users (1:N) 200,000 200,000
Templates (1:1) Not supported Not supported
Templates (1:N) Not supported Not supported
Text Log 1,000,000 1,000,000
Image Log 5,000 5,000
HW CPU 667MHz DSP 667MHz DSP
Memory 128MB RAM + 1GB Flash 128MB RAM + 1GB Flash
LCD Type 3.5" Color Touch 3.5" Color Touch
LED Not supported Not supported
Sound 16-bit 16-bit
Operating Temperature -20° to 50°C -20° to 50°C
Storage Temperature -40°C ~ 70°C -40°C ~ 70°C
Operating Humidity 0% ~ 80%, non-condensing
Storage Humidity 0% ~ 90%, non-condensing
Weight Device: 136g, Bracket: 48g (including washers and bolts) Device: 136g, Bracket: 48g (including washers and bolts)
Dimension (WxHxD, mm) 79 x 135 x 21 79 x 135 x 21
Tamper Supported Supported
Interface Wi-Fi Not supported Not supported
Ethernet 10/100 Mbps, auto MDI/MDI-X
RS-485 1ch Host or Slave (Selectable)
Wiegand 1ch In or 1ch Out (Selectable)
TTL Input 2 Inputs 2 Inputs
Relay 1 Relay 1 Relay
USB Not supported Not supported
SD Card Not supported Not supported
PoE Not supported Not supported
Intercom Not supported Not supported
Electrical Power 12VDC 12VDC
