TPL
Overview

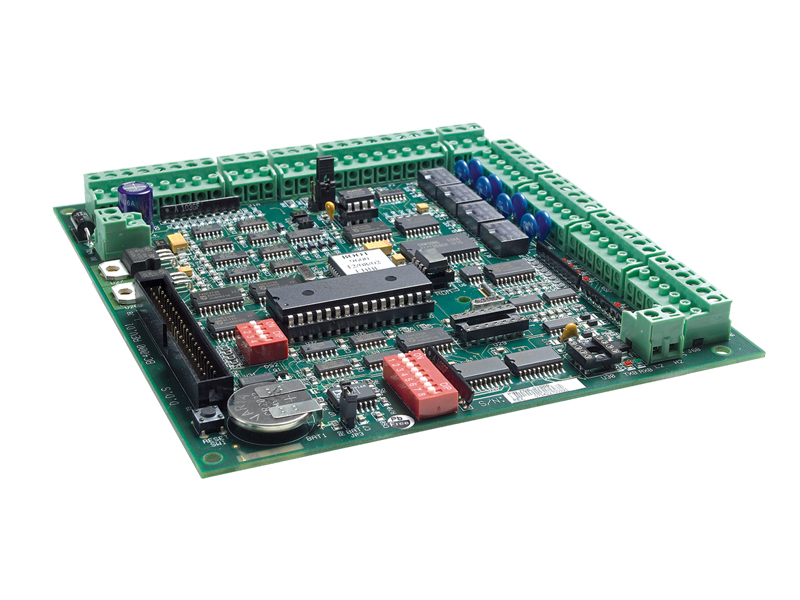

TPL controller is especially suited to high-security access control and real-time monitoring environments. DDS best-seller controller is adapted to a wide range of installations, from medium size to complex multi-sites installations. It is available in two versions: 2-door/4-reader or 4-door/4-reader.

Benefits

High capacities are reached via the TPL's RAM dynamic allocation between cardholders and events buffer. This allows getting maximal capacities of 44K cardholders for the TPL controller (4 readers / 2 doors) – 32K cardholders for the TPL-D4 controller (4 readers / 4 doors) - or 47K events in memory, according to the on-board ROM.

The controller's 8 inputs (4 of which supervised) and 4 outputs can be extended to 16 inputs (12 of which supervised) and to 64 outputs, with the addition of plugin extension boards and satellites.

The controller can be connected to the PC via RS485/RS232 or TCP/IP; the latest is available from a plug-in extension card.

Programming is simple and the Flash memory allows easy firmware upgrade.

Boosted communication security is achieved through optional second serial bus for redundant communication with host allowing event alarm mode, global reflex and anti-passback without PC. Communication encryption and use of new technologies provides maximal protection against external perturbations and reinforce the security.

TPL takes independent decisions at the local level, such as door opening or outputs / reflexes triggering, without any computer intervention.

TPL fits a wide range of installations. It is easily integrated within external BMS applications, and can be associated to other DDS controllers.

Key Features
  • 4-reader/2-door (TPL4) or 4-reader/4-door (TPL4-D4)
  • 8 digital inputs (4 of which supervised), extendable to 16 inputs (12 of which supervised)
  • 4 relays (each with 3 outputs contacts), extendable to 64
  • 512K RAM memory for operating database, backed by lithium battery to last for 10 years
  • Up to 44K cardholders (up to 32K cardholders for the TPL-D4)
  • Up to 47K events in buffer with RAM dynamic allocation
  • 1 MB Flash memory for application firmware (downloaded from PC)
  • 255 daily programs, 127 weekly programs
  • 180 holidays and Special days
  • 255 reflexes (local & network)
  • 2 serial ports (RS232/RS485 and optional second bus RS485)
  • Redundant bus
  • Global reflexes and APB without PC via the second bus of communication
  • Polling or event driven operation
  • Programmable communication encryption
  • TCP on board (optional)
  • Autonomous decisions at the local level without degradation
  • Multi-technology: biometric, smart card, proximity, magnetic, etc.
  • Speed from 4.800 to 38.400 Bauds
  • Removable connectors
  • High reliability in adverse environments
Technical Specifications
  • Board dimension: 158x149x20 or 32 mm
  • Operating temperature: 0o C to +55o C
  • Storage temperature: -10o C to +65o C
  • Operational humidity: 10 to 95% RH
  • Board weight: 270g
  • Board weight: 230g
  • Working voltage: 12 VDC +/- 20% 120mA
  • Alarm input max voltage: +/- 30V
