WIRELESS COMMUNICATION: It detects room occupancy and has wireless communication with the energy saver.
STANDALONE: Battery operated.
INSTALLATION: Overhead surface mounted on the ceiling.
SEVERAL SENSORS: Several sensors can be installed in the room.
TEMPERATURE SENSOR: temperature sensor embedded.
| Description | Ceiling surface mounted motion sensor |
|---|---|
| Reference | SVOxIxS |
| Power | 3 batteries LR3 1,5 V ( AAA alkaline battery) |
| Standalone | 4 years (30uA average consumption, max. 20mA)*with alkaline batteries |
| Communications | 2,4GHz, IEEE 802.15.4 wireless |
| Communications Coverage | 10 m (distance to the energy saver) |
| Interface | Red LED |
| Temperature Range | -10º to 50º |
| Technology | Infrared passive detector. Fresnel lens. |
| Detection Coverage | 6 m ( for a height of 3m)* coverage according to mounting height |
| Assembly Height | Between 2,5-4m |
| Thermostat Precision | ±2º (-10º to 50º) |

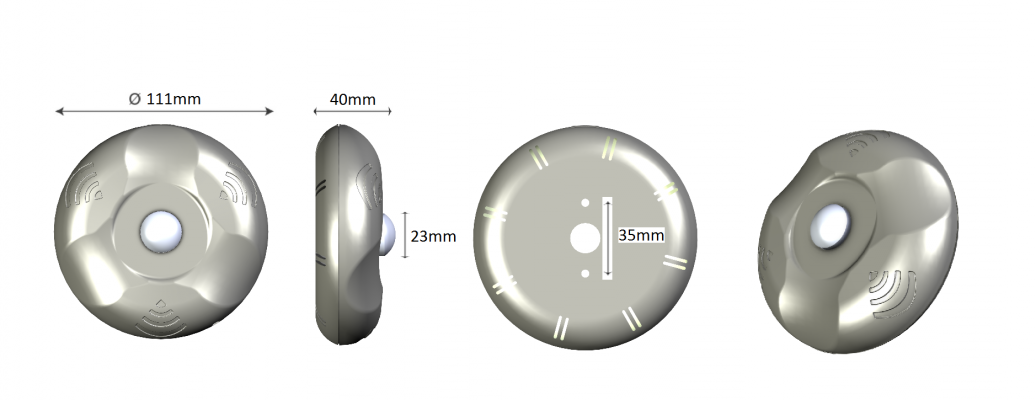

| Dimensions/Weight | φ 111m x 40 mm / 120g |
