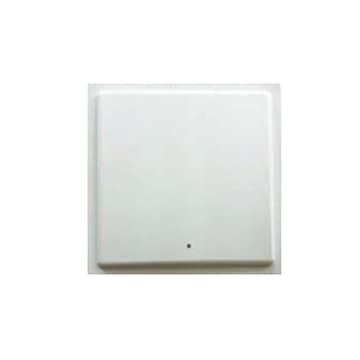

915 Long Range Reader

Micro ID 915 long range reader designed for read/write ISO18000-6B and ISO18000-6C (EPC Class1 Gen2) tags. The reader is reliable and expandability which widely use in logistics control, transportation management, asset management and production line management. 915 long range reader provides multiple communication interface like RS232 and Wiegand cater for different application environment.

Specifications



Performance Index
Operating Frequency 919MHz - 923MHz, RF band customized (optional)
Frequency Hopping FHSS or Fixed Frequency
Power Output 0dBm ~ 30dBm, able to set from software
Antenna Built-in 12dBi linear polarization antenna (horizontal/vertical customized)
Communication Interfaces RS-232, Wiegand 26/34
Expanding Interfaces RS-485, 10M/100M Ethernet interfaces
Application Software Platform API (C++, C#) development kit (can be customized)
Tag Operation
Tag Protocol ISO18000-6B, EPC Class 1 Gen 2(ISO18000-6C)
Reading Range 0~12m
Mechanical/Electric Performance
Waterproof

IP55

Power DC 12V
Power Assumption Not more than 4W
Dimension 445*445*55mm
Operating Temperature -20℃ ~ +80℃
Storage Temperature -40℃ ~ +125℃
Storage Temp. -40 ~85°C
Humidity  20%~95%(non-condensing)
915 Long Range Card

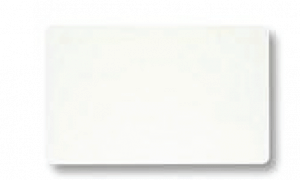

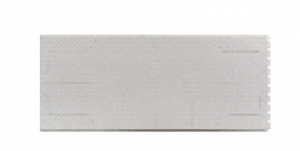

Model MID-001 UHF Card MID-002 UHF Paper Tag MID-003 UHF On-Metal Tag
Frequency 860 Mhz to 960 Mhz
Read Range 5 to 10 meters or more 12 meters or more
Transmission Passive
Protocol

ISO 18000-6B or ISO 18000-6C

EPC Class 1 Gen 2

ISO 18000-6C EPC Class 1 Gen 2
Dimension 86 x 54 x 0.8 mm 110 x 45 mm 224 x 23 12 mm
Data Retention Time Data can be saved for 10 years
Work Temperature - 40 to 65 °C
Storage Temperature -55 to 85 °C
