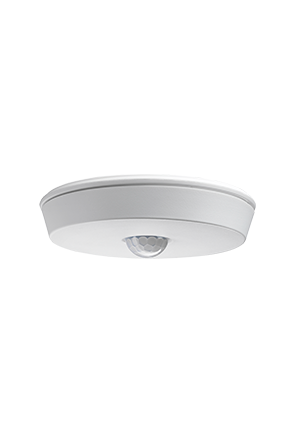

XS4 Sense Multisensor

The XS4 Sense wire-free multisensor is a battery-powered Passive Infrared (PIR) sensor designed to detect movement and determine room occupancy in real time.

When motion is detected, the sensor assesses whether the room is occupied and triggers an automated energy management strategy. Based on occupancy data, it wirelessly controls connected lighting and air-conditioning systems, switching them on or off as required.

The sensors communicate with the XS4 Sense Controller and switching devices, enabling intelligent, automated control without complex wiring.

This provides a more energy-efficient and sustainable solution, while improving room control and simplifying installation.

Features

  • Presence detection. Acts primarliy as a motion detector, recognizing room occupancy through PIR and micro door sensor data.
  • Smart occupancy-based control. Allows users to control temperature and lighting when the room is occupied, while automatically switching off the power when unoccupied.
  • Extended coverage with multiple sensors. Supports pairing of up to two multisensors per controller for full room coverage in larger or irregular spaces.
  • Flexible ceiling installation. Quick mounting designed with a two-screw rotating mechanism for quick and secure installation on the ceiling.
  • Easy programming. Includes a configuration button for quick and simple pairing with the controller.
  • Infrared emitter. Equipped with 3 IR emitters that permit alternative and more accurate control of the infrared equipped split units.
  • Built-in environmental sensors. It includes temperature and humidity sensors for future applications and integrations.

Technical Characteristics

  • Housing dimensions: 111 x 21 mm
  • Wireless communication
    • Frequency range: 2400 MHz – 2483.5 MHz
    • Communication standard: Bluetooth® LE
    • Transmit Power: +2 dBm (Bluetooth)
    • Internal Range: 10–15 meters
  • Motion detection (PIR Sensor)
    • Sensor: Passive Infrared (PIR)
    • Installation height: Up to 5 meters
    • Detection angle: Horizontal 120°, Vertical 60°
  • Infrared transmitter
    • Coverage angle: 360°
    • Max transmission distance: 5 meters to receiver
  • Battery powered
    • Battery type: 4 × AA (LR6)
    • Battery life: Up to 3 years
  • Flexible ceiling installation
  • Not suitable for outdoor use

Technology Plaforms

Certifications

CEFCICRCMUKCA
