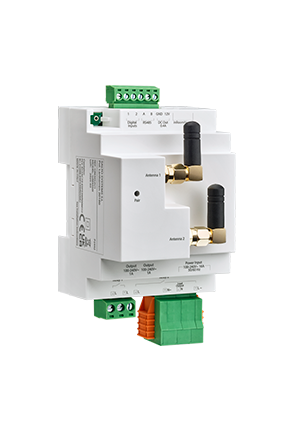

XS4 Sense Controller

The XS4 Sense Controller is the central device for intelligent room energy management, designed to optimize power consumption based on real-time occupancy data.

Connected directly to the main power supply, the controller communicates wirelessly with the XS4 Sense multisensor and door/window sensors to activate configured energy-saving scenarios.

Its DIN rail-mounted design enables the automatic shutdown of air conditioning and lighting when a room is unoccupied, helping eliminate unnecessary energy consumption while improving overall efficiency and control.

Features

  • Wide range AC input allows deployment in regions with 110–230 V mains. Designed to run directly from the room’s power supply without external adapters.
  • Compact, 4 module DIN rail form factor for straightforward mounting inside electrical cabinets. Leaves space for neat wiring and auxiliary protection devices.
  • Two integrated 1A relays provide low current switching to drive contactors for AC/lighting. Helps separate control from power circuits for safer operation.
  • Dual antenna design enhances Wi-Fi and Bluetooth communication:
  • Onboard Wi-Fi enables direct communication to the XS4 Sense Local Appliance Server (only under online mode). Simplifies setup without needing a wired Ethernet drop.
  • Bluetooth provides a low energy, short range link to peripheral sensors to trigger the change scenario. Supports quick pairing and responsive updates from room devices.
  • Integrated metering tracks real-time current and consumption of up to 16 A on the monitored line(s). Facilitates energy-saving strategies and diagnostic insight.
  • Dedicated interface to the Salto InRoomNode (C08) for seamless ecosystem integration with Salto Space. Streamlines installation and ensure reliable BLUEnet Wireless communication between components.
  • Discrete inputs accept signals from existing wired magnetic contacts or similar dry contact sensors. Useful scenarios where wireless connectivity isn’t feasible, or wiring is in place.

Technical Characteristics

  • Housing dimensions: 124 x 70 x 70,5 mm
  • Power supply: 110V – 230V AC
  • Power consumption: 5W (10W max)
  • 2 relays (1A) for AC and lighting control
  • Energy meter: Measures currents up to 16A
  • Antennas: 2 units
    • Wi-Fi: (IEEE 802. 11 b/g/n) 2.4GHz (20/40MHz)
    • Bluetooth® LE
  • DIN modules: 4 units
  • Temperature: 0ºC-45ºC
  • Humidity: 0-99%
  • Not suitable for outdoor use

Technology Platforms

Certifications

CEFCICRCMUKCA
