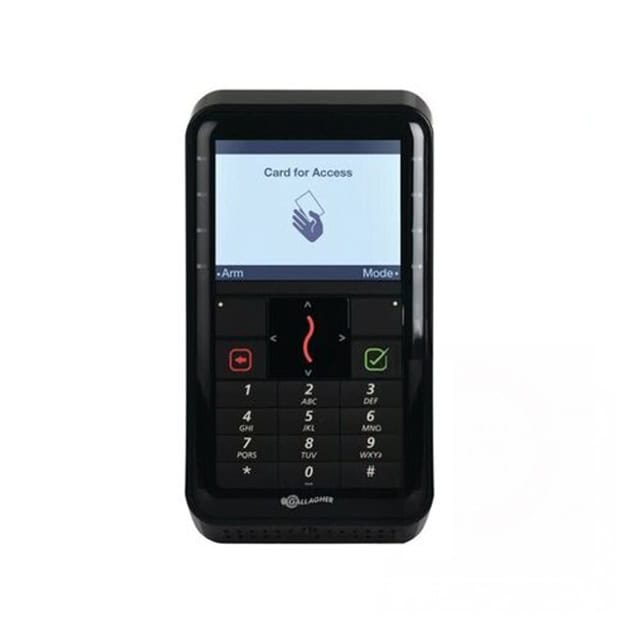

High Sec T20 Reader Multi Tech Black

The Gallagher High Sec T20 Reader, Multi Tech is a contactless PIV card and PIN reader designed to meet the FIPS 201-2 “PIN to PACS” specification. Engineered for high-security environments, it delivers industry-leading read speeds and extended read range for faster, more convenient, and secure door access.

The T20 Reader supports a broad range of government and secure identity credentials, including PIV, PIV-I, PIV-C, CIV, TWIC, and CAC cards. For shared federal and non-federal facilities, it can also be optionally configured to support MIFARE Classic, MIFARE Plus, MIFARE DESFire EV1 and EV2 credentials, as well as 125 kHz technology, providing maximum flexibility and compatibility across diverse access control environments.

Product Details

Features & Benefits

  • Large, durable keypad designed for reliable everyday operation
  • 3.5” LED display provides clear user feedback and system interaction
  • IP66-rated protection against dust and water ingress for dependable outdoor performance
  • Optional alarm management functionality for enhanced site security control
  • Multi-language support for greater flexibility across diverse environments
  • Integrated rear tamper detection helps identify and prevent unauthorized interference
  • Customizable display capabilities for company logos, promotional imagery, personalized messaging, and tailored access granted/denied notifications
  • Enforce cardholder competencies through on-screen messaging and user prompts
  • Fully configurable Mimic Panel displaying the status of up to 8 inputs, outputs, or alarm zones
  • In-field software upgrades via HBUS ensure compatibility with the latest technology advancements
  • Advanced security with 256-bit ECC authentication and 128-bit AES* encrypted communication between readers and the Controller 6000
  • Backed by a five-year warranty for long-term reliability and peace of mind
  • Cipher Pad functionality helps prevent PIN exposure and protects against bystander observation

Specifications

Readers And Terminals

Environmental Protection 66   IP
Impact rating 08   IK
Voltage 9-16   Vdc
Dimensions 179.5 x 96 x 23   mm
Dimensions 7.1 x 3.8 x 0.9   "
Cable Specifications HBUS 500m
Standards compliance UL, FCC, CE, RCM, GSA APL
