EL-OMD-EXO200

With its extremely small form factor and durable encapsulation, EL-OMD-EXO200 tags are ideally suited to track small metal assets including attachment to:

  • Small hand tools
  • Fixed and mobile industrial equipment
  • Industrial production tooling
RF Specifications
ProtocolEPC Class 1 Gen2
Frequency Range (MHz)866-868 (EU)



902-928 (US)

Read Range (Fixed reader)¹Up to 2.5m (8.2ft)
Read Range (Handheld reader)¹Up to 1.25m (4.1ft)
Material CompatibilityOn metal only
IC Type (chip)Alien H3
Memory ²EPC – 96bits



User – 512 bits

TID – 64 bits

1. Quoted performance achieved using standard testing methodology. Read range will vary with reader hardware and output power.

2. EPC and User memory are reprogrammable, TID is locked at point of manufacture.

Tag Details
EncasementDurable Thermoplastic Material

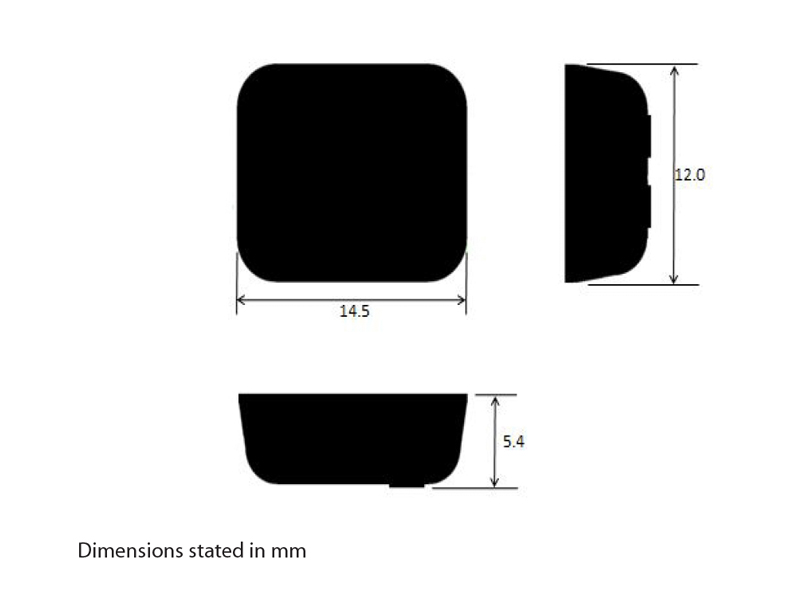

Size (mm)



(tolerance)

14.5 x 12 x 5.4



+/- 0.5

Size (in)



(tolerance)

0.57 x 0.47 x 0.21



+/- 0.02

Weight (g)1.0

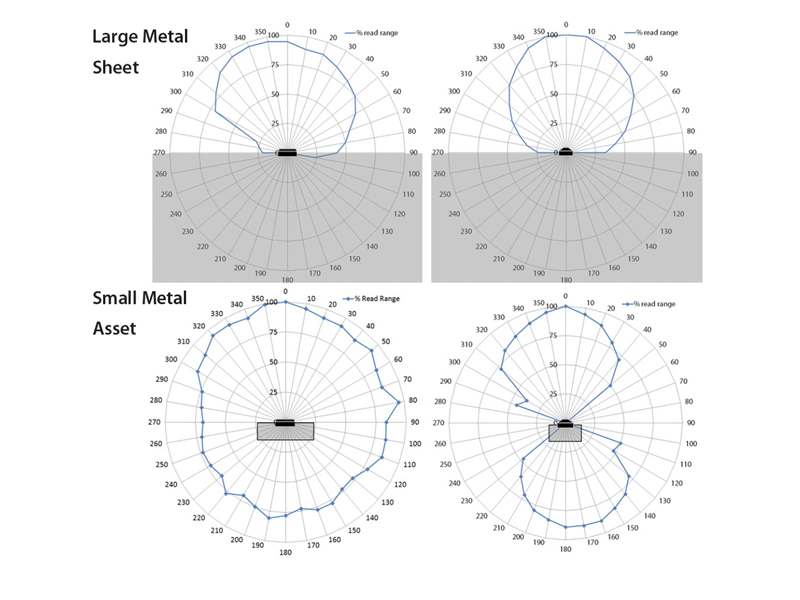

Radiation Patterns

Environmental Specs
Operating Temperature-40 to +85°C
Long term Max Temperature¹

exposure – (days, weeks, years)

+85°C





Short term Max Temperature¹

exposure – (minutes, hours)

+105°C
IP RatingIP68
Shock and vibrationMIL STD 810-F
AttachmentFoam adhesive as standard
CertificationsRoHS approved

CE approved

ATEX/IECEx certified (option)

US&Canada (C1D1/D2) certified (option)
