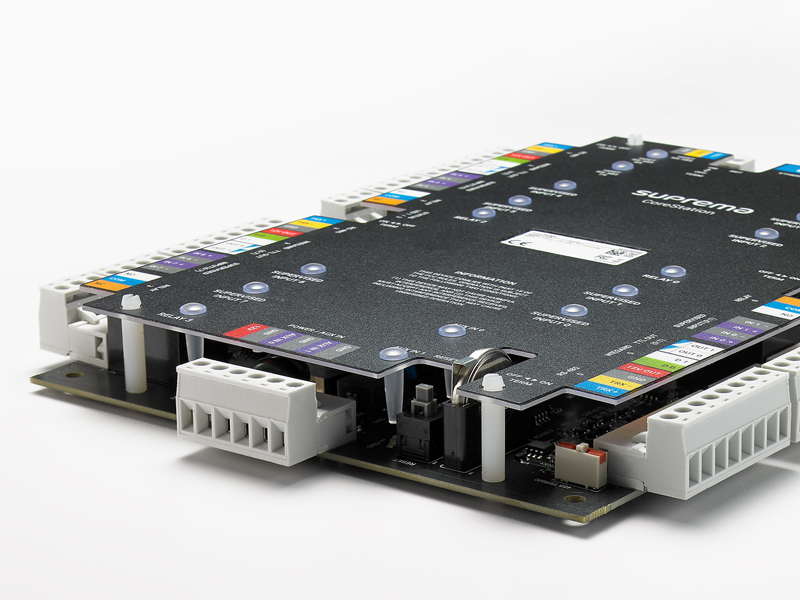

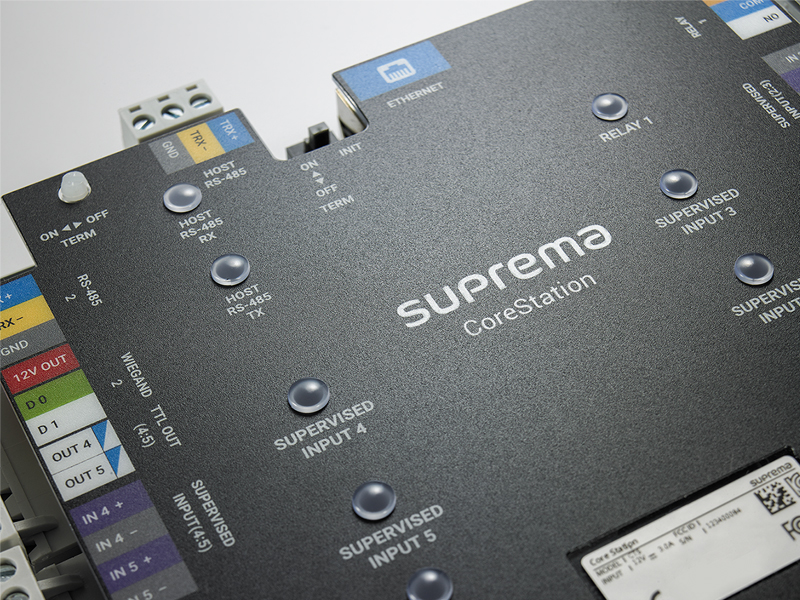

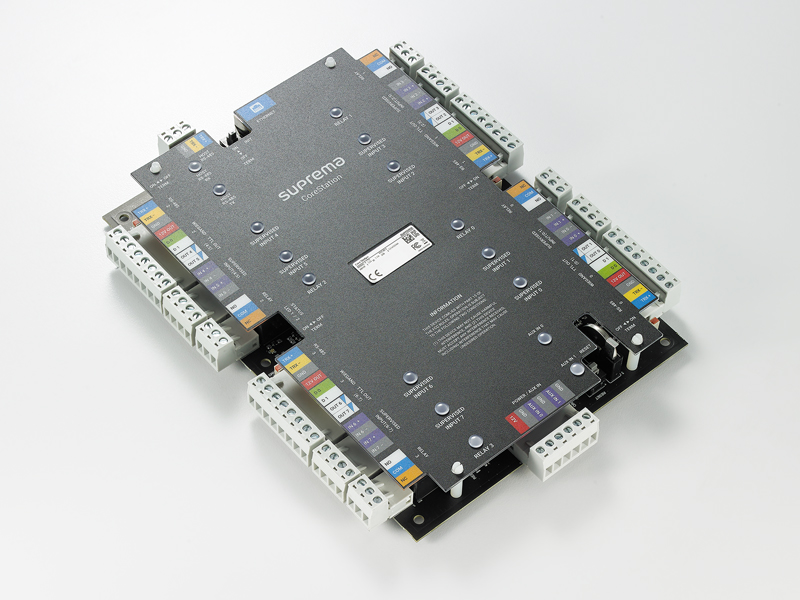

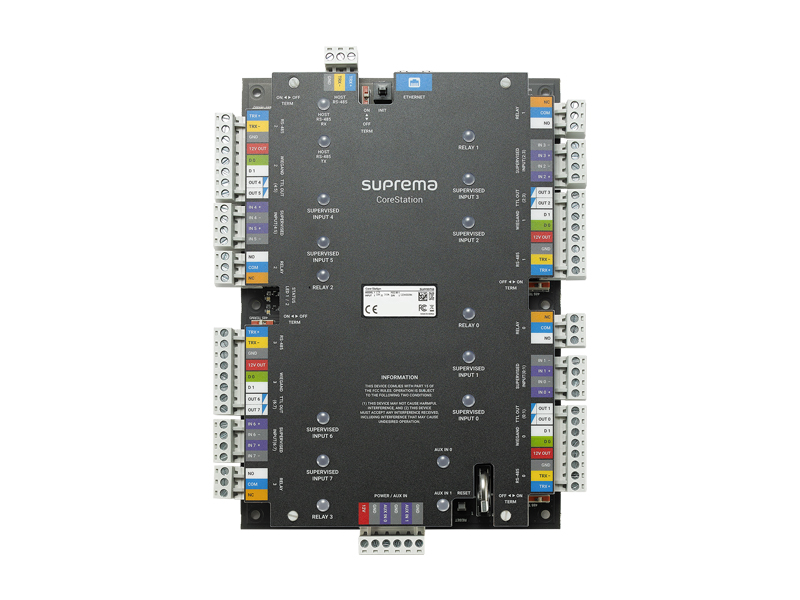

CoreStation

Suprema CoreStation is an intelligent door controller which provides the advantages of a biometric-enabled security over a centralized access control systems. Designed up to enterprise-level systems, the CoreStation handles up to 500,000 users with an incredible fingerprint matching speed of up to 400,000 match/sec. With the provisions of high-performance, biometric readiness, Ethernet communication, CoreStation is capable of offering the full features of the BioStar2 platform.

Features
  • Centralized Biometric Access Control
  • Complete controller functionalities with fingerprint matching
  • Multi-port interface for fingerprint /RF readers
  • Enterprise-level Capacity
  • Improved Security
    • Centralized, secure storage of biometric and access group data
    • No Ethernet connection to the edge devices
    • No data stored on the edge devices
    • Secure communication via TLS 1.2
    • AES-256 encryption
  • System Flexibility and Scalability
    • OSDP 2.0 compatible
    • Elevator control with OM-120
    • Supports up to 132 access points with DM-20 and Secure I/O 2 (132 x Wiegand readers/64 x RS-485 readers)
    • 3rd party Wiegand reader
    • 4ch onboard reader control (Wiegand, RS-485, relays, inputs, outputs, power out, AUX)
    • Leverages existing wiring
  • Simultaneous matching speed up to 8 devices in 1 second
Configuration

Specification
Model Name CS40
Capacity (Fingerprint) Users (1:1)
* Based on one finger enrollment per user
500000
Users (1:N)
* Based on one finger enrollment per user
100000
Max. Finger per User 10
Text Log 5000000
Image Log Not supported
HW CPU 1.4 GHz Octa Core
Memory 8GB Flash + 1GB RAM
LCD Type Not supported
LED Multi-color
Sound Not supported
Operating Temperature 0°C ~ 50°C
Storage Temperature -40°C ~ 70°C
Operating Humidity 0% ~ 80%, non-condensing
Storage Humidity 0% ~ 95%, non-condensing
Weight 415 g
Dimension (WxHxD, mm) 150 x 214 x 21
Tamper Optional (ENCR-10
Certificates CE, KC, RoHS, REACH, WEEE
Interface Wi-Fi Not supported
Ethernet 10/100 Mbps, auto MDI/MDI-X
RS-485 5 ch
Wiegand 4 ch
Relay 4 relays
USB Not supported
SD Card Not supported
PoE Not supported
Intercom Not supported
RS-485 Communication Protocol OSDP V2 Compliant
Supervised Input 8 ch(TTL input selectable
TTL Output 8 ch
AUX Input 2 ch(AC POWER FAIL, TAMPER
Electrical Power DC 12 V
Connectivity Max. Slave Devices (RS-485 Max. 64 devices (Max. 31 devices per port)
Max. Wiegand Devices Max. 132 devices (with DM-20)
