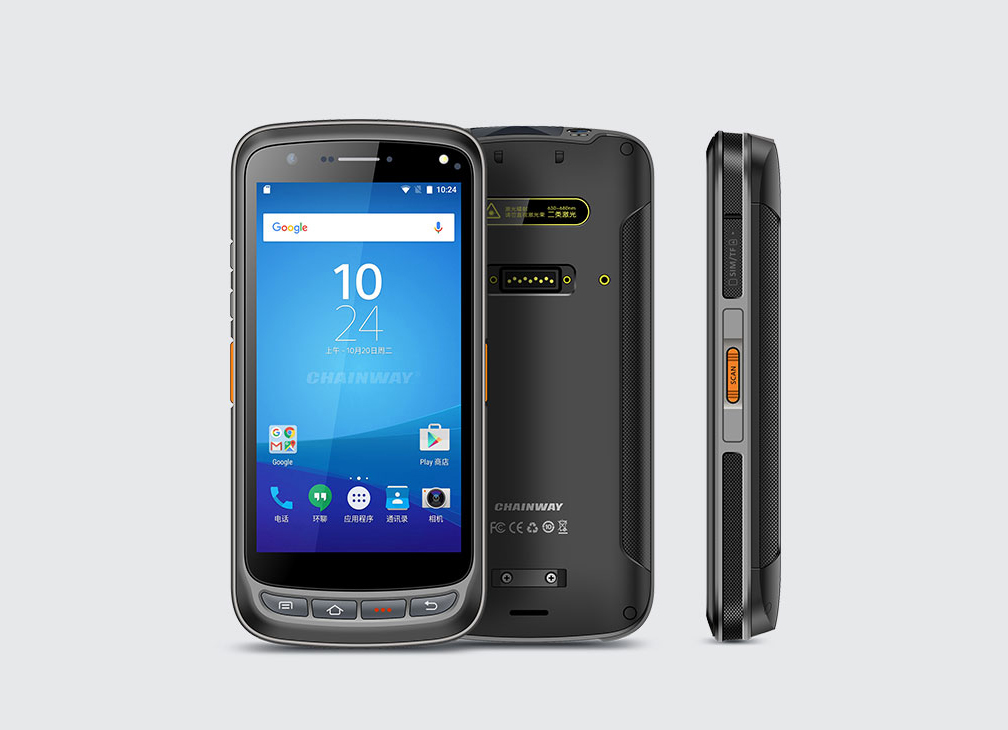

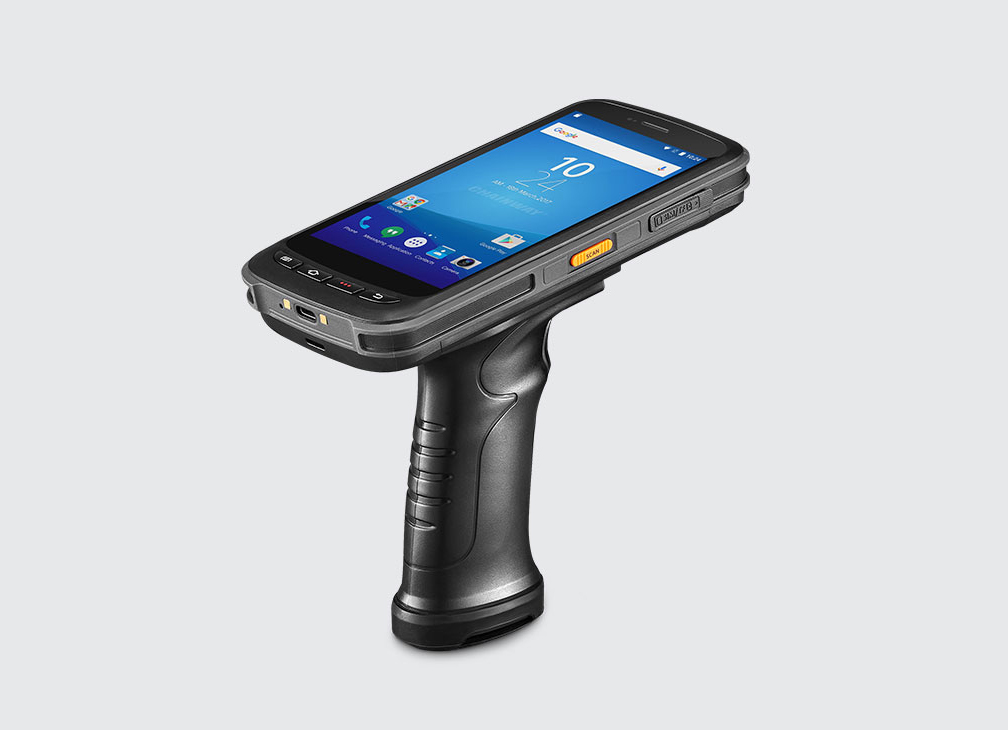

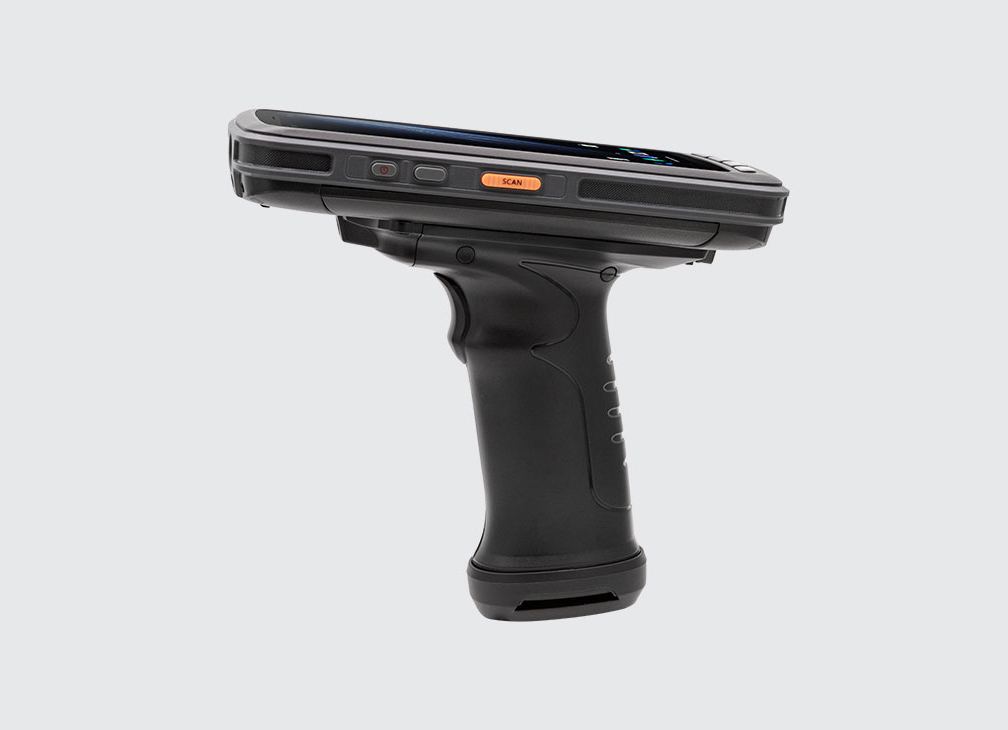

C72 Mobile Computer (Android 11)

Ultimate Barcode Scanning, Powerful Battery, Easy to Hold

Chainway C72 is an industrial-grade Android mobile reader. With an in-build Zebra scan engine, the device ensures powerful barcode scanning performance that can accurately & quickly read various Symbologies of 1D/2D barcode labels even if the barcode is dirty, damaged, or wrinkled. In addition, C72 features Android 11 / 8.1 OS, Octa-core processor, 8000mAh powerful battery, 13 MP camera, and optional NFC reading. The device is perfectly suitable for various applications in power inspection, asset management, retail, warehousing, logistics, finance & manufacturing industries, etc.

Features

  • Android 11
  • RAM+ROM: 3+32GB/4+64GB (Optional)
  • Cortex-A53 Octa-core 2.3GHz
  • 8000mAh Powerful Battery

Functions

  • Barcode Scanning (Optional)
  • 13MP Autofocus Camera
  • NFC (Optional)
  • Accurate GPS
  • Dual-band WIFI

Specifications

Physical Characteristics
Dimensions 164.2 x 80.0 x 24.3 mm / 6.46 x 3.15 x 0.96 in.
Weight 654 g / 23.07 oz.
Display 5.2'' IPS LTPS 1920 x 1080
Touch Panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power Main battery: Li-ion, rechargeable, 8000 mAh
Standby: over 500 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)
Notification Sound, LED indicator
Expansion Slot 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Interfaces USB 2.0 Type-C, OTG, Type-C headphones supported
Audio 1 microphone;1 speaker;receiver
Keypad 4 front keys, 1 power key, 2 scan keys, 1 multifunctional key
Sensors Light sensor, proximity sensor, gravity sensor



Communication
WLAN IEEE802.11 a/b/g/n/ac, 2.4G/5G dual-band, internal antenna
WWAN 2G: GSM850/GSM900/DCS1800/PCS1900
3G: WCDMA:B1/B2/B4/B5/B8
       CDMA2000 EVDO: BC0
       TD-SCDMA:A/F
4G:B1/B2/B3/B4/B5/B7/B8/B12/B17/B20/B28A
       B28B/B34/B38/B39/B40/B41
WWAN (Others) Depending on the country's ISP
Bluetooth Bluetooth 5.0
GNSS GPS/AGPS, GLONASS, BeiDou; internal antenna
Note *C72 models being manufactured for Turkish Market, do not include Voice Call (Phone Call) function. WAN module included on those models only support DATA transfer.


Developing Environment
Operating System Android 11; GMS, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 12, 13, and Android 14 pending feasibility
SDK Chainway Software Development Kit
Language Java
Tool Eclipse / Android Studio


Performance
CPU Cortex-A53 2.3 GHz Octa-core
RAM+ROM 3GB + 32GB
4GB + 64GB (optional)
Expansion Supports up to 128 GB Micro SD card





User Environment
Operating Temp. 4 °F to 122 °F / -20 °C to 50 °C
Storage Temp. -40 °F to 158 °F / -40 °C to 70 °C
Humidity 5% RH - 95% RH non condensing
Drop Specification Multiple 1.5 m / 4.9 ft. drops (at least 20 times) to the concrete across the operating temperature range
Tumble Specification 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing Host IP65 per IEC sealing specifications
ESD ±15 KV air discharge, ±6 KV conductive discharge





Barcode Scanning
1D Linear Scanner Zebra: SE965; Honeywell: N4313
2D Imager Scanner Zebra: SE4710 / SE4750SR / SE4750MR / SE4750DP; Honeywell: N6603
1D Symbologies UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note *This function is optional



Camera
Camera 13 MP Autofocus with flash





NFC
Frequency 13.56 MHz
Protocol ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips M1 card (S50, S70), CPU card, NFC tags, etc.
Range 2-4 cm
