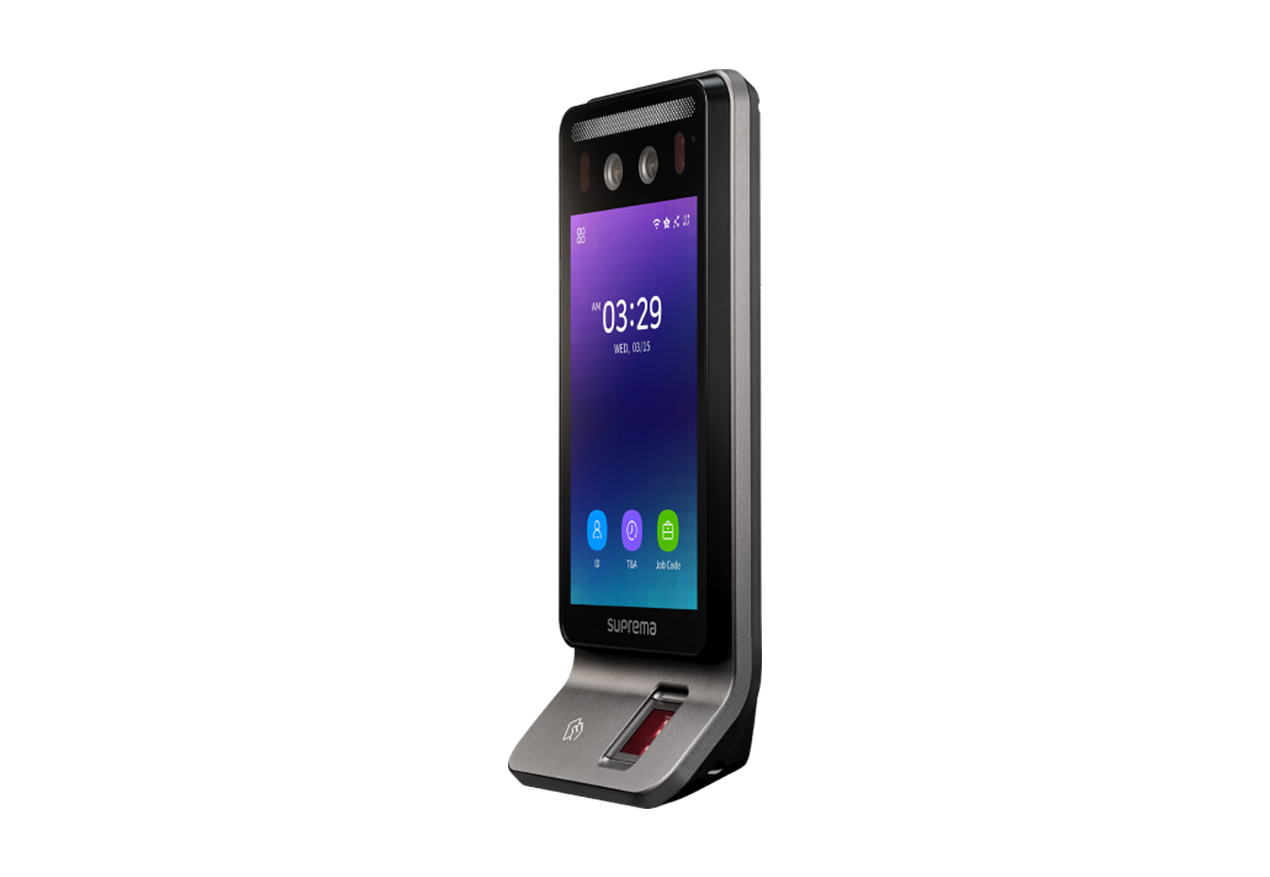

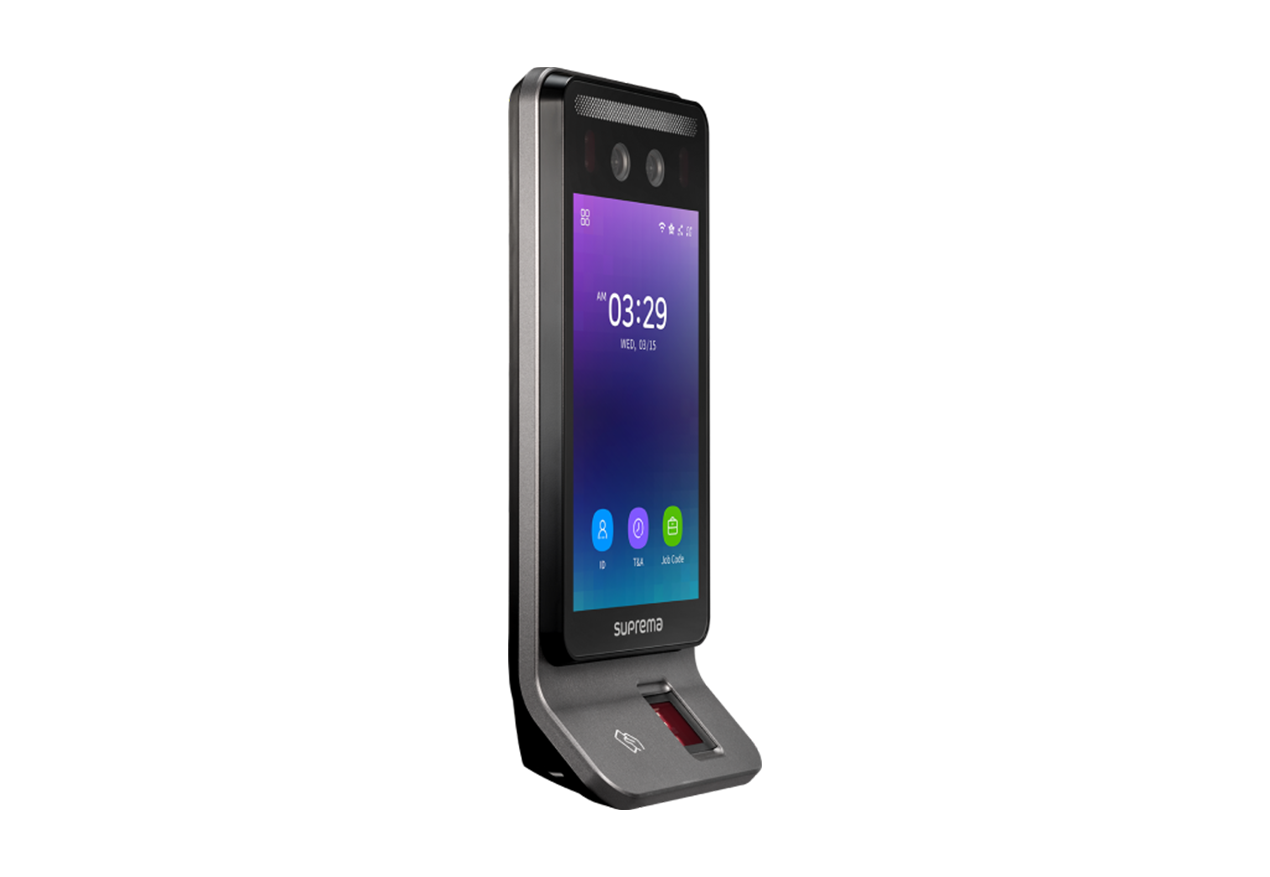

BioStation 3 Max

Intelligent QR RFID Reader

BioStation 3 Max is Suprema’s flagship AI-driven biometric access terminal, engineered for identity-centric security in high-traffic and high-security environments. Designed for demanding entry points and busy reception areas, it delivers rapid and reliable multi-factor authentication through a hardened, enterprise-grade platform with extensive certifications. The device integrates broad credential compatibility and trusted biometric verification into a single, enterprise-ready 7-inch touchscreen solution.

Identity-first security and enterprise compliance.

BioStation 3 Max is engineered on a hardened Linux architecture designed for enterprise-grade security and resilience. Its advanced protection framework includes Secure Boot, encrypted biometric data handling, secure tamper detection and response, and privacy-focused technologies such as Template on Mobile. Enhanced by robust multi-factor authentication, the platform reinforces secure access control at critical entry points. Backed by CC EAL6+ certified secure elements and extensive global certifications, it is built to satisfy the security, compliance, and deployment demands of enterprise and highly regulated environments.

Access at the blink of AI.

BioStation 3 Max is powered by a dedicated NPU-driven AI engine that enables ultra-fast face authentication, advanced anti-spoofing protection, and reliable continuous operation in high-density access environments. Designed for demanding enterprise applications, it delivers exceptional speed, accuracy, and system stability across busy lobbies, speed gates, and large-scale deployments where high throughput and dependable performance are critical.

One touch, every access, always connected.

With BioStation 3 Max, access becomes seamless from the very first interaction. The moment a visitor is recognized, the gate unlocks and communication with reception is instantly established. Face recognition, fingerprint, card, mobile access, QR, PIN, and even two-factor authentication are unified within a single intelligent terminal, while the integrated intercom enables real-time communication between visitors and staff. By consolidating multiple access and communication functions into one streamlined device, BioStation 3 Max eliminates unnecessary hardware clutter and creates a cleaner, more sophisticated entrance experience. It represents the modern standard for premium organizations seeking both elevated security and a refined first impression.

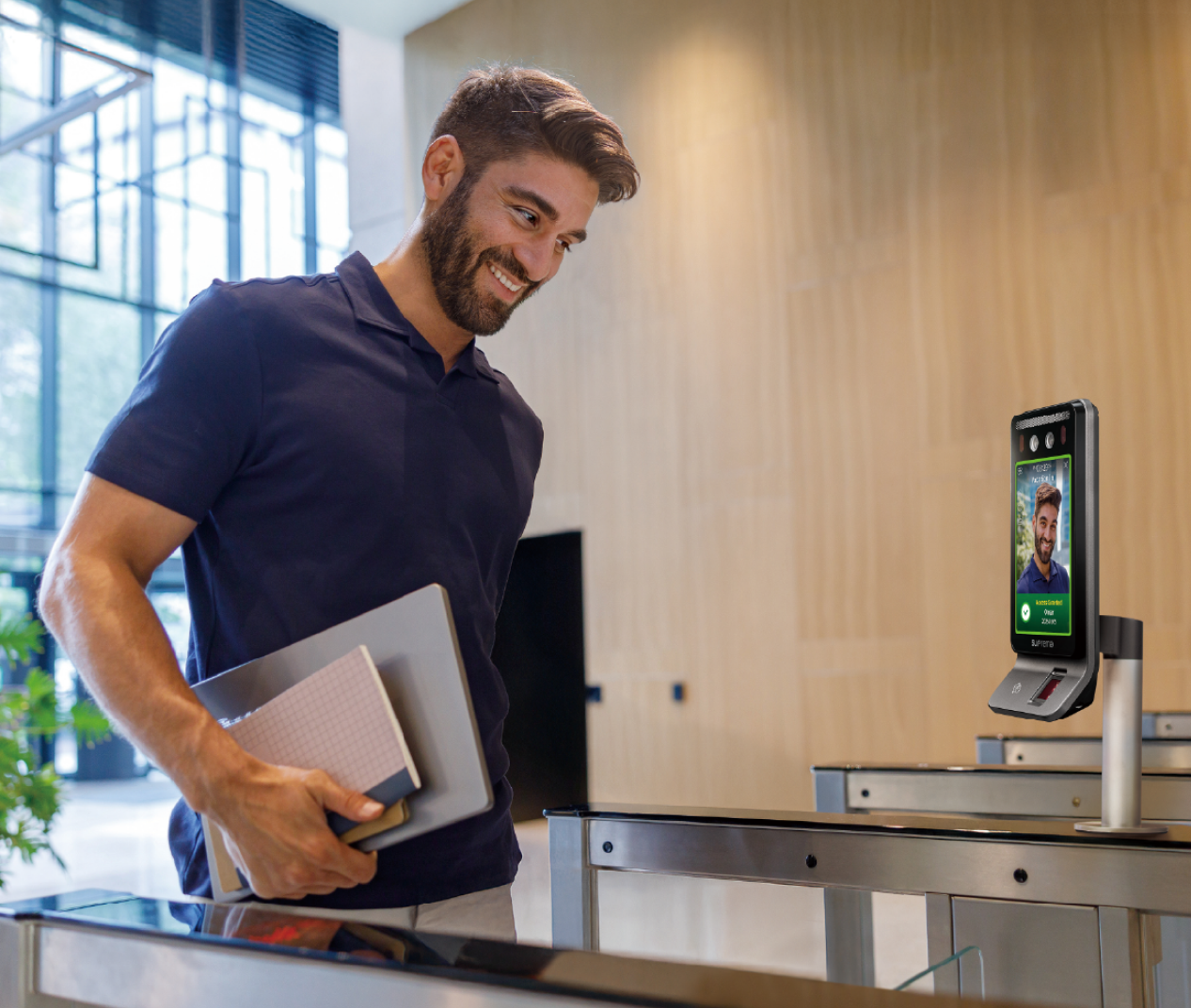

Designed to make an entrance.

BioStation 3 Max is designed to make a strong first impression while delivering the durability required for demanding environments. Its slim profile and expansive 7-inch touchscreen integrate seamlessly into premium lobbies and modern entrances where user experience and brand presentation are essential. Beneath its refined exterior, IP65 and IK06-rated protection safeguards the device against dust, water, and daily impacts, ensuring dependable performance in busy front-of-house settings.

Specifications

Specification BS3M-OAPB BS3M-ODB BS3M-APB BS3M-DB
Max. User 100,000 (1)
Max. Credentials (1:N) Face: 50,000
Fingerprint, Card: 100,000 / Card: 100,000
Face: 50,000
Fingerprint, Card: 100,000 / Card: 100,000
Max. Credentials (1:1) Face, Fingerprint, Card, PIN: 100,000 / Face, Card, PIN: 100,000 Face, Fingerprint, Card, PIN: 100,000 / Face, Card, PIN: 100,000
Max. Text Logs 5,000,000
Max. Image Logs 50,000
Fingerprint 2 per user  -
Live Fingerprint Detection SW LFD  -
Face Template 10 per user
RF Option EM, MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3 (2),
FeliCa, iCLASS SE/SR/Seos, HID Prox
EM, MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3 (2),
FeliCa
EM, MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3 (2),
FeliCa, iCLASS SE/SR/Seos, HID Prox
EM, MIFARE, MIFARE Plus, DESFire EV1/EV2/EV3 (2),
FeliCa
RF Read Range (3) EM/MIFARE/DESFire/HID iCLASS: 50 mm
HID Prox/FeliCa: 30 mm
Mobile NFC, BLE
QR/Barcode (4) Supported (5)
CPU 1.4 GHz Quad Core
Memory 32 GB Flash + 4 GB RAM
Camera 2MP × 2EA (Visual, IR)
IP Rating IP65
IK Rating IK06
Weight 640g (Bracket: 206g)  565g (Bracket: 187g)
Dimension (W×H×D) 119.8 × 268.3 × 23.5 (49.6) mm  119.8 × 233 × 23.5 mm
Power [12 Vdc] Current: Max. 2.1 A
[24 Vdc] Current: Max. 1 A
Certificates CE (CE models only), UKCA, KC, FCC, IC, RCM,
RoHS, REACH, WEEE, SIG, MIC, TELEC,
ETL Listed to UL 294
Ethernet Supported (10/100/1000 Mbps, auto MDI/MDI-X)
RS-485 1ch Master / Slave (Selectable)
Wiegand 1ch Input, 1ch Output
Input 3ch Inputs
Relay 1 Relay
USB Host USB 2.0 (Type-C)
Extended USB Supported
PoE+ (6) Supported (IEEE 802.3at compliant) - Supported (IEEE 802.3at compliant) -
Intercom Supported



1) The number of users registered without having any credential data.

2) DESFire EV2/EV3 cards are backward compatible with DESFire EV1 cards, supporting CSN and smartcard features, including those

of the DESFire EV1 card.

3) RF read range will vary depending on installation environment.

4) Supports QR/Barcodes composed of up to 32 ASCII code strings.

5) Camera QR license is required to use more diverse QR/barcode authentication. For detailed information on device licenses, please refer to the BioStar X Administrator Guide.

6) Requires PoE+ (IEEE 802.3at, 30 W) or PoE++ (IEEE 802.3bt, 60–100 W) power. Standard PoE (IEEE 802.3af, 15.4 W) is not supported.

Using standard PoE may cause devices to operate unstably or be permanently damaged. Before connecting the device, make sure your network switch or PoE injector supports PoE+ or PoE++.
