BioStar X | On-Prem Security

One Platform. Total Confidence.

BioStar X is Suprema’s unified security platform that combines industry-leading biometric access control with integrated monitoring, all supported by an enterprise-grade infrastructure designed for scalability, high availability, and regulatory compliance.

High security energy, without the complexity.

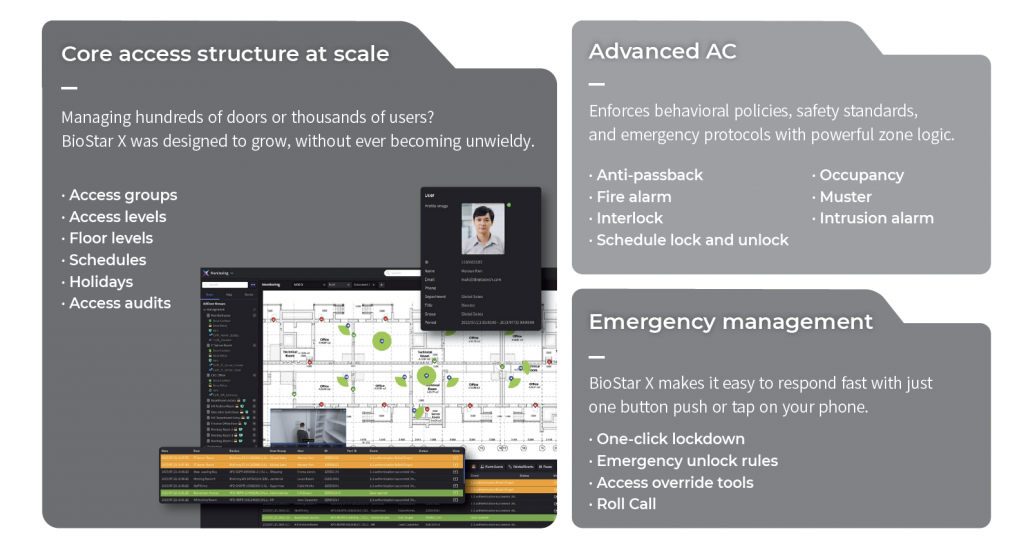

Total control, over who, where and when.

From the lobby to the rooftop, BioStar X gives you precise control over every access point. With centralized management of schedules, zones, fire systems, and floor access, you’re not just controlling doors—you’re directing how people move throughout your entire facility.

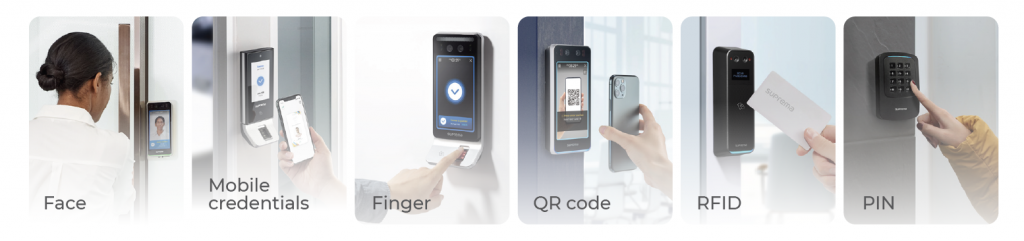

Multi-credential. One user, multiple ways in.

Whether managing employees, contractors, or guests, BioStar X supports multiple credentials and a full range of access methods—giving you the flexibility to keep operations running smoothly.

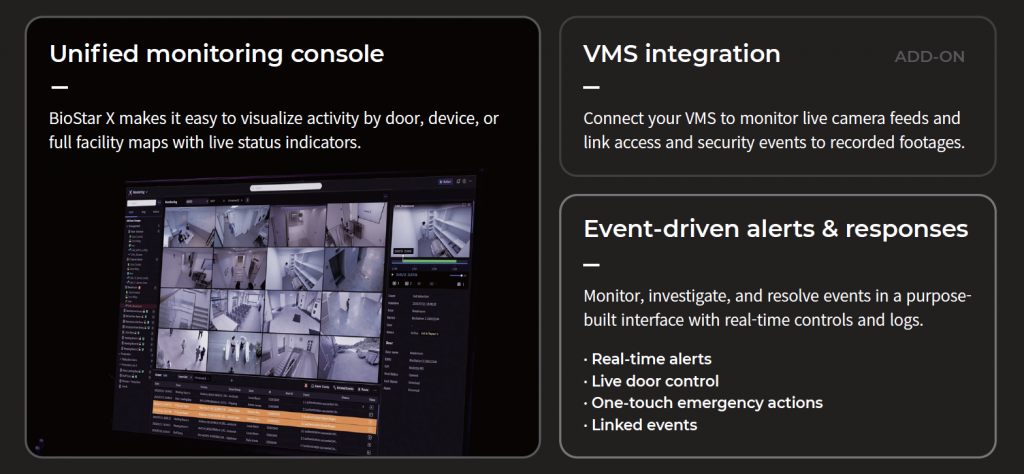

Always on, intelligence that makes moves.

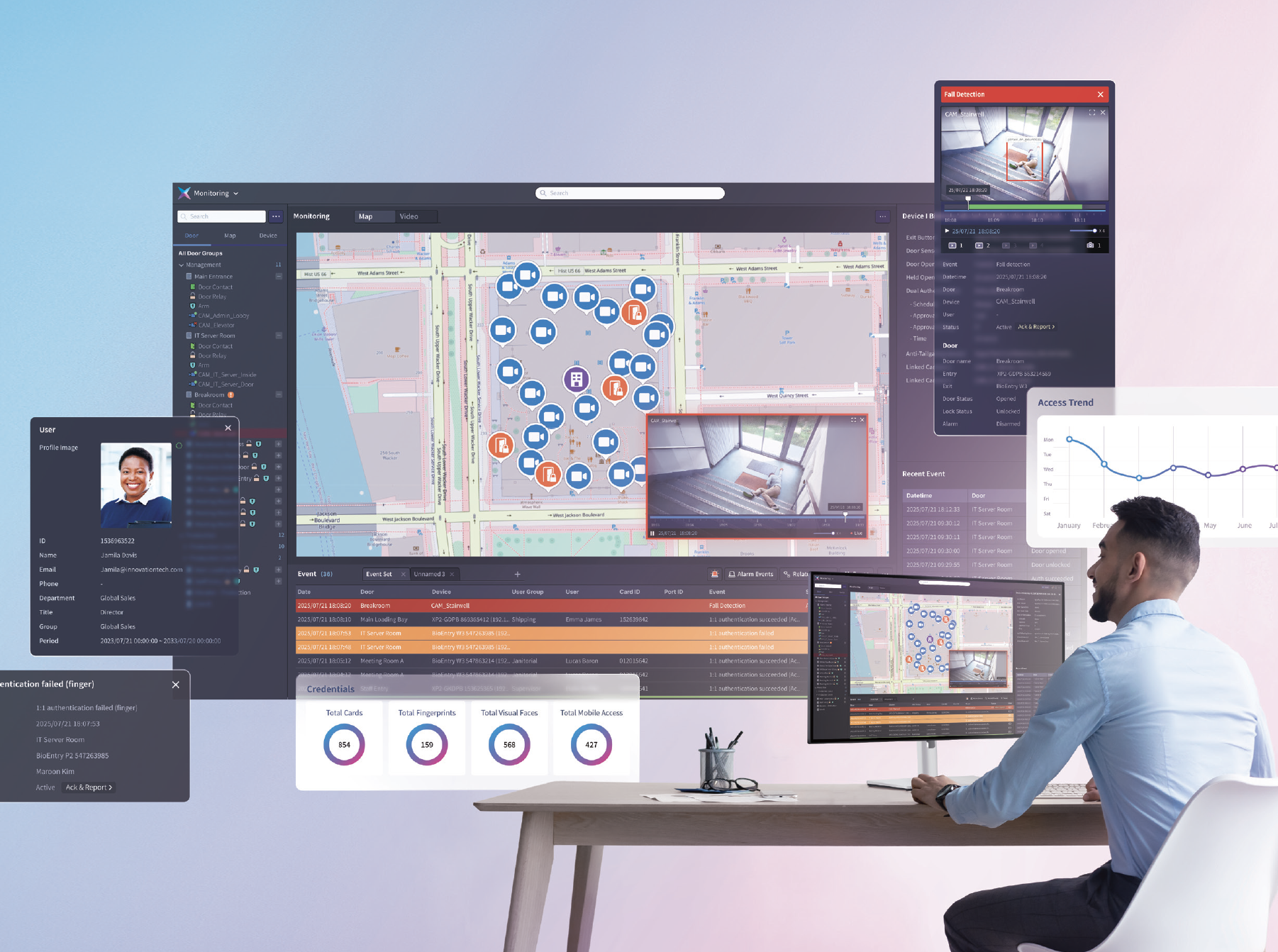

BioStar X unifies AI-driven detection, live video feeds, and zone-level controls in a single monitoring console. Whether you're protecting one floor or an expansive site, it delivers complete visibility and faster response—cutting through the noise with smarter insights.

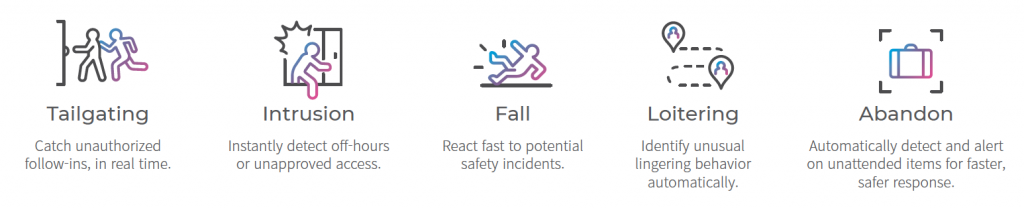

AI-based monitoring enhancements.

Advanced video intelligence and automation, built right into BioStar X.

*VMS Integration required.

Rock-solid security, built for Enterprises.

BioStar X enforces security from core to edge with AES-256 encryption, role-based access controls, and over 50 event triggers. Designed for real-world demands, it ensures both peace of mind and strict compliance where nothing less is acceptable.

Main Server Requirements

 Item Small Medium Enterprise
Usage Environment Total Devices 1 to 50 51 to 100 101 to 1,000
System Requirement Operating System Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, Windows Server 2022
Database MariaDB 11.4.4, MS SQL Server 2012 SP3, 2014 SP2, 2016 SP1, 2017, 2019, 2022
CPU 2.3 GHz 6-core 2.3 GHz 8-core Minimum 2.3 GHz, Recommended 4.0 GHz 16-core
RAM 16 GB 32 GB Minimum 64 GB, Recommended 128 GB
SSD 512 GB 512 GB 1 TB
HDD When using the feature, 200 GB is required for 10 million image logs.

Licensing

The base license is a required component that must be purchased to activate and operate the system. It serves as the foundation upon which additional features and upgrades can be applied.



  Starter Essential Advanced Enterprise Elite
Max. doors 5 32 128 500 2,000
Max. users 100 1,000 50,000 100,000 500,000
Max. operators 1 10 20 40 100
Upgrades* -
Maps - -
Video - - Add-on Add-on Add-on
Advanced AC** - - Add-on
Multi-comm servers - - Add-on Add-on Add-on
GIS map - - Add-on Add-on Add-on
Server matching - - Add-on Add-on Add-on
Visitors - - Add-on Add-on Add-on
Active directory - - Add-on Add-on Add-on
Roll call - - Add-on Add-on Add-on
T&A Add-on Add-on Add-on Add-on Add-on
Mobile app Add-on Add-on Add-on Add-on Add-on
Event log API Add-on Add-on Add-on Add-on Add-on
Remote access Add-on Add-on Add-on Add-on Add-on
BioStar X Plugin Add-on Add-on Add-on Add-on Add-on

* Capacity upgrades are available for Door, Users, and Operators.

** Global APB, Global Fire Alarm, Intrusion Alarm, Mustering, Occupancy Limit, Elevator, Interlock.
