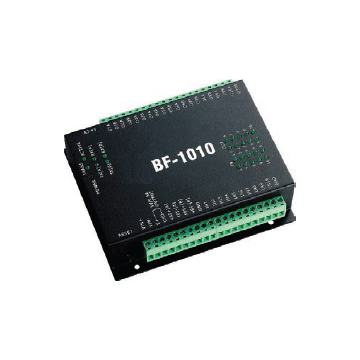

BF1010 Digital Input and Output Controller
  • 10 Digital Inputs and 10 Digital Outputs
  • Monitor Digital Inputs: Panic Button, Temperature Sensor, Door Sensor, …etc.
  • Remote Control Outputs: Siren, Alarm, Light, Fan, …etc.
  • Report E-map monitoring and email alert
  • Master & Slave structure (Max 30 DI and 30 DO)
  • Sensor text overlay (BF1010 DIO controller with temperature / humidity / CO2 sensors, shown real room status from sensors)
  • Alarm alert (screen alerts from events - unregistered user, door open too long)
  • Setup trigger events between terminals thru TCP/IP
  • For Example: (1) Use for panic button system (2) Door alarm monitoring system
Specification



CPU   16bit / 100MHz Memory 256 KB ROM & 1 MB SDRAM
Watch Dog System Protection Power Requirement DC 9 ~ 30 V, 500 mA
Double Badges 10 sets (2-3 employee/set)  Communication  RS485, TCP/IP
Operation Temperature  0 ~ 55 °C Operation Humidity   5% ~ 85% RH
Dimension (mm) 135 x 115 x 35   Weight (g.) 525
Ethernet RJ45 Port   10/100 Base-T, Half/Full duplex, Auto Cross over, 1.5KV magne􀀁c protected
Serial Port   COM1 & COM2 with RS485 Interface
I/O Port 10 Channel I/O: 10 isolated D/I and 10 isolated D/O
Isolated D/I -> Optical Isolation: 2,500 VDC, Overload protection: 70 VDC, Dry Contact
Isolated D/O -> Optical Isolation: 2,500 VDC, Contact rating: AC:120V @0.5A, DC:30V @ 1A
  Total switching time: 10ms
 Serial Settng   Parity Check: None, Even, Old, Mark, Space
Data Bits: 5,6,7,8
Stop Bits: 1, 2 Flow Control, RTS / CTS / XON / XOFF
Operation System   Windows, Linus, Unix
Protocol   TCP, IP, UDP, Telnet, ARP, DHCP, ICMP, SMTP, PPPoE, HTTP, UNIX
Operation Mode 10 Channel I/O: 10 isolated D/I and 10 isolated D/O
  Support TCP/UDP Sever, Client mode
User name & Password protected for web management
Built-in HTTP server for set up and remote management thru browsers
Support system backup & restore COM drivers

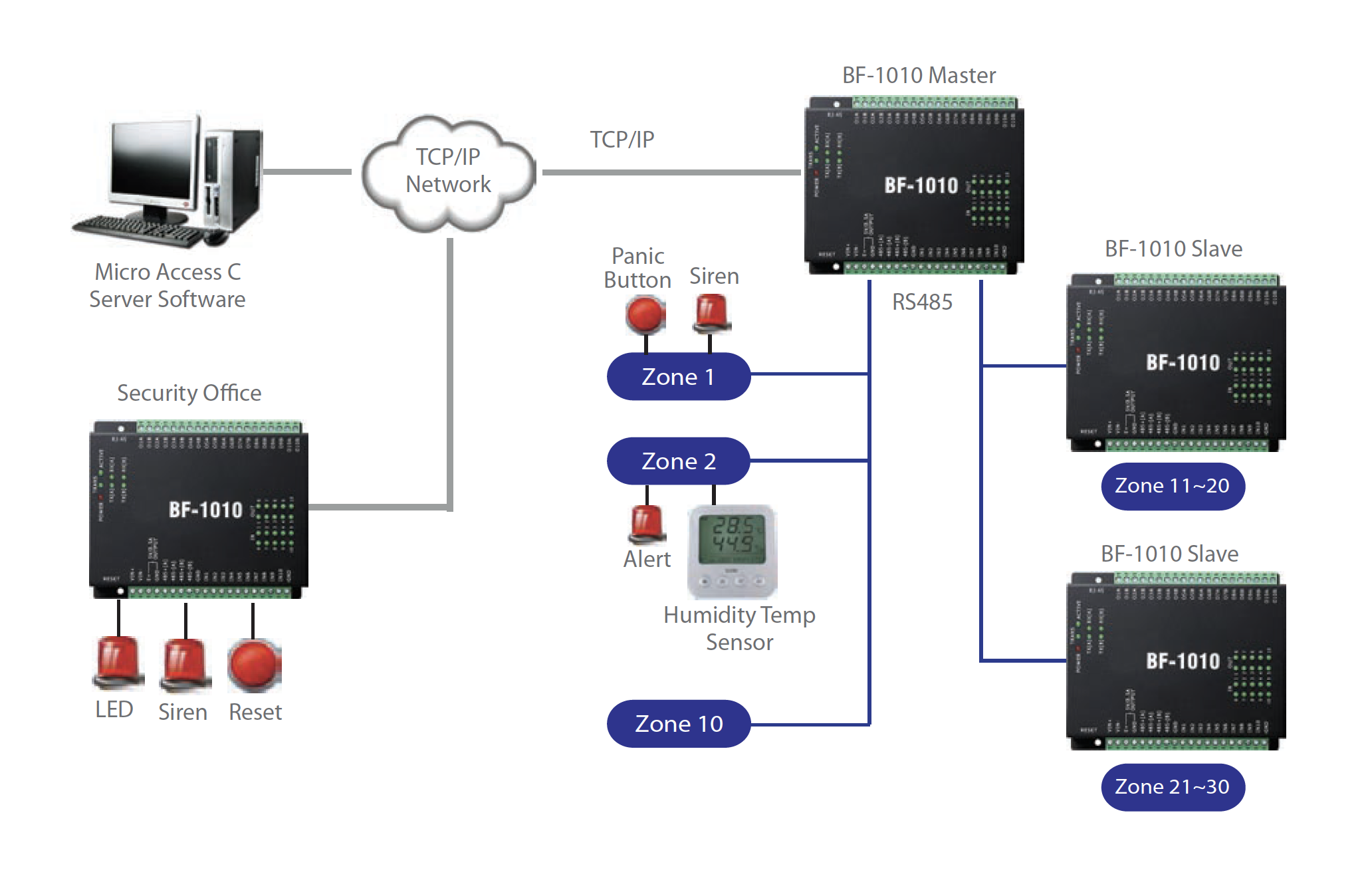

PANIC BUTTON SYSTEM LAYOUT DIAGRAM

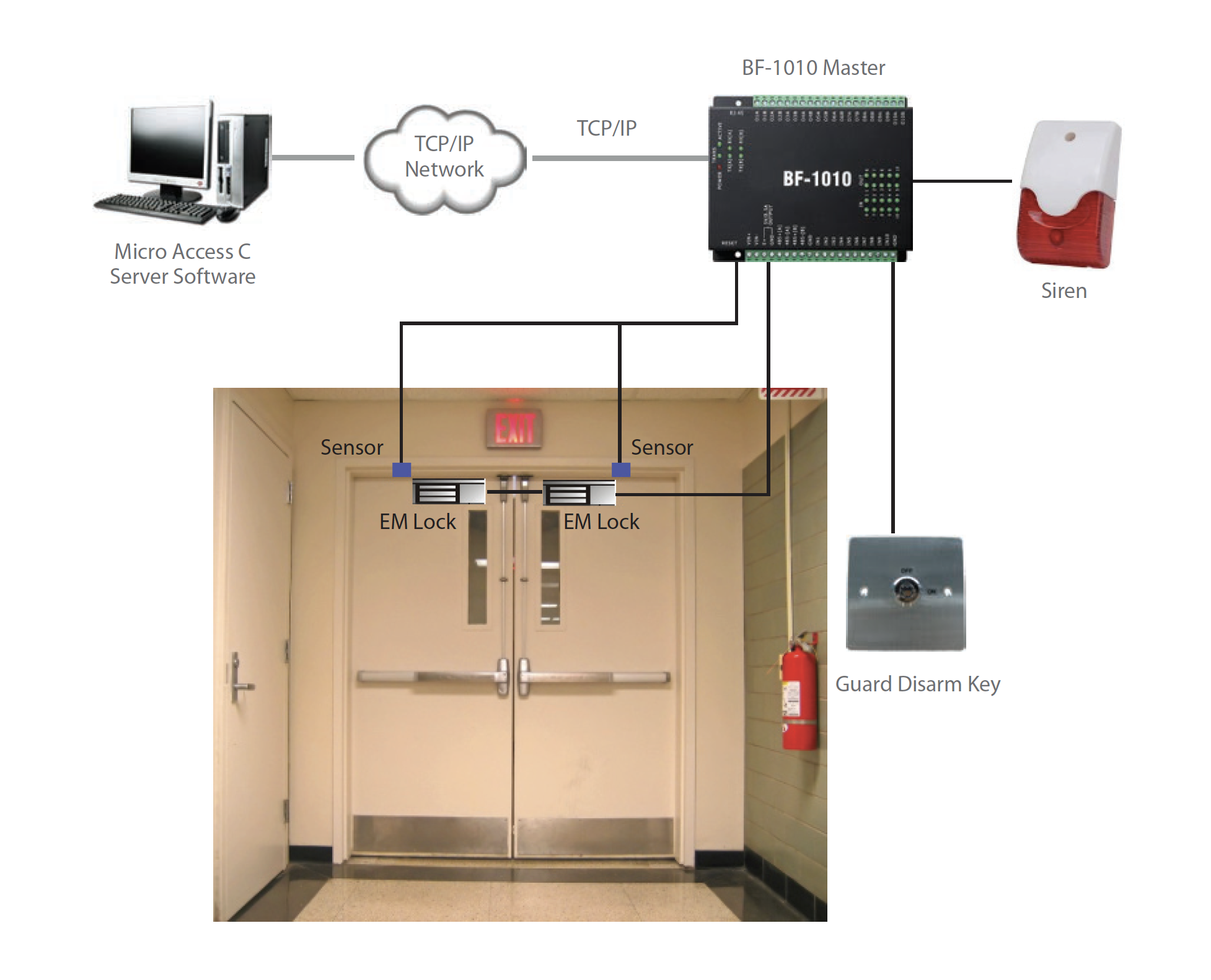

DOOR ALARM MONITORING SYSTEM LAYOUT DIAGRAM
