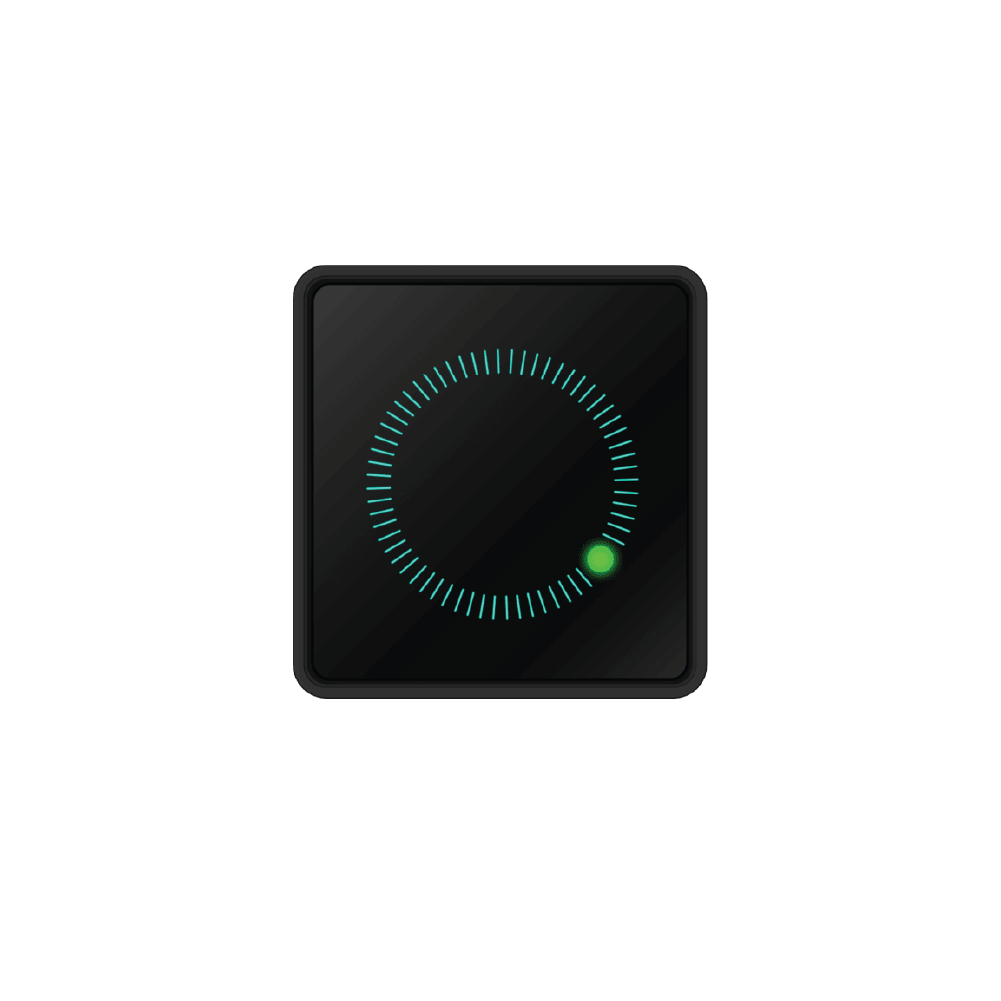

AirFob Patch

Mobile-to-RF-card converter

Suprema Airfob Patch is an award-winning innovation that attaches to existing RF card readers, enabling them to work with credentials stored on mobile devices.

• Airfob Patch converts Bluetooth signals from Mobile Access Cards into RF card signals.
• It operates without a battery, drawing power from RF field signals emitted by the card reader.
• Designed as a retrofit, patch-on solution, Airfob Patch is quick and simple to install.

Features

Translator of BLE to RF signal

• Enables communication between card readers and Mobile Access Cards by translating Bluetooth signal to RF card signal

• Compatible with both Android and iOS Mobile Access Cards

Power without battery

• Charges itself by harvesting energy from the RF field signals transmitted from the card reader

Easy installation

• Adhesive-backed patch-on device easily applicable to existing RF card readers

• No wiring or construction needed

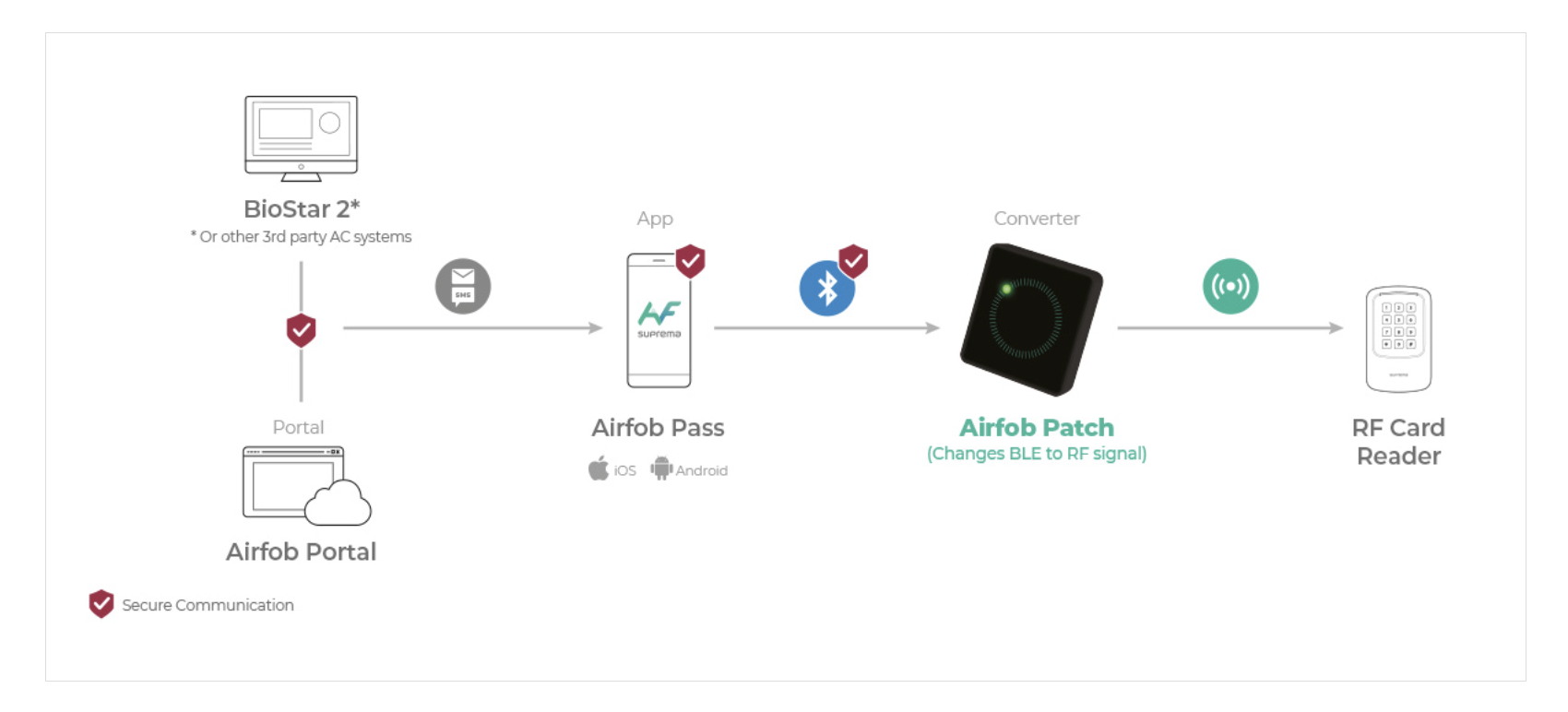

System Configurations

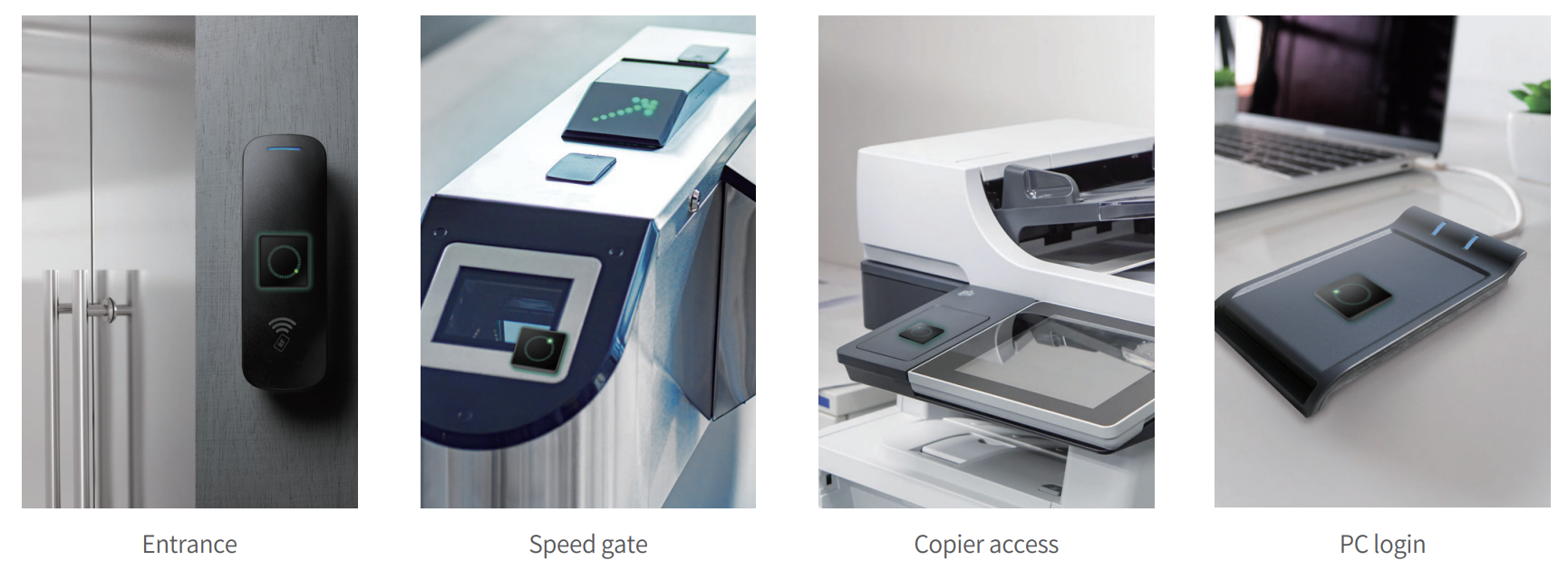

Apply to Everywhere RF Card is Used

Specifications

Energy SupplyEnergy harvesting from card reader
Dimensions (WxHxD) 32 mm x 33.5 mm x 5.7 mm (1.26“ x 1.32“ x 0.22“)
Weightapprox. 13 g
Wireless Communication Compatibility BLE (Bluetooth Low Energy) 4.0
Card Compatibility13.56MHz MIFARE CSN / NFC Smart card*
LEDPower status & card emulation
IP RatingIP 65

* NFC Smart card requires additional configuration
