XPass D2

XPass D2 is an outdoor compact RFID reader based on Suprema's state-of-the-art RFID technology and multi-hardware platform, optimized for centralized access control systems such as Suprema's CoreStation. Using multi-form factor technology, mullion-type, gangbox-type and gangbox keypad-type are all supported. With dual-frequency (125kHz / 13.56MHz) RFID technology, XPass D2 also supports mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP65/IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environment and outdoor installation.

Features
  • Mobile card (NFC and BLE)
  • Industry standard communication via OSDP
  • Multi-type hardware structure
  • Enhanced security with the Secure Element
  • IP67 - Water and Dust Resistant
  • IK08 - Vandal Resistant
  • Multi-card Reading
  • Issue the smart card by using BioStar 2
Specifications
Model Name XPD2-MDB XPD2-GDB XPD2-GKDB
RFID RF Option 125KHz EM, Wiegand Format Card & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa 125KHz EM, Wiegand Format Card & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
Mobile Card NFC, BLE NFC, BLE NFC, BLE
Protections Ingress Protection IP65, IP67 IP65, IP67 IP65, IP67
Vandal Proof IK08 IK08 IK08
HW CPU 80 MHz 80 MHz 80 MHz
Memory 256 KB Flash + 64 KB RAM 256 KB Flash + 64 KB RAM 256 KB Flash + 64 KB RAM
LCD Type Not supported Not supported Not supported
LED Multiple colors Multiple colors Multiple colors
Sound Multi-tone Buzzer Multi-tone Buzzer Multi-tone Buzzer
Operating Temperature -35°C ~ 65°C -35°C ~ 65°C -35°C ~ 65°C
Storage Temperature -40°C ~ 70°C -40°C ~ 70°C -40°C ~ 70°C
Operating Humidity 0% ~ 95%, non-condensing 0% ~ 95%, non-condensing 0% ~ 95%, non-condensing
Storage Humidity 0% ~ 95%, non-condensing 0% ~ 95%, non-condensing 0% ~ 95%, non-condensing
Weight Device: 117g, Bracket: 30g (Including washer and bolt) Device: 117g, Bracket: 30g (Including washer and bolt) Device: 117g, Bracket: 30g (Including washer and bolt)
Dimension (WxHxD, mm) 48 x 144.7 x 27 80 x 130 x 25 80 x 130 x 25
Tamper Supported Supported Supported
Interface Wi-Fi Not supported Not supported Not supported
Ethernet Not supported Not supported Not supported
RS-485 1ch Slave 1ch Slave 1ch Slave
Wiegand 1ch 1ch 1ch
TTL Input Not supported Not supported Not supported
Relay Not supported Not supported Not supported
USB Not supported Not supported Not supported
SD Card Not supported Not supported Not supported
PoE Not supported Not supported Not supported
Intercom Not supported Not supported Not supported
Electrical Power DC 12 V DC 12 V DC 12 V
Accessories

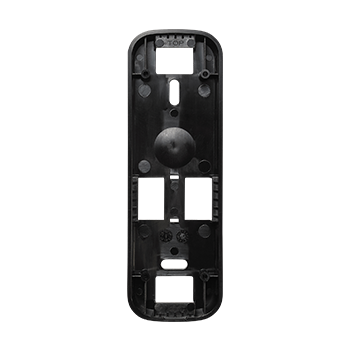

Extended Bracket (Mullion-type)

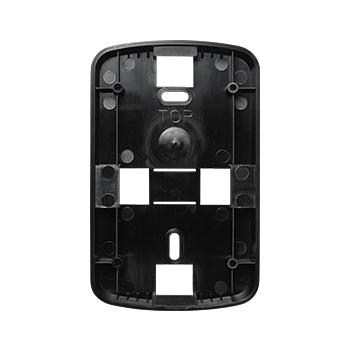

Extended Bracket (Gangbox-type)
Peripheral Device
Secure Multi Door I/O Module

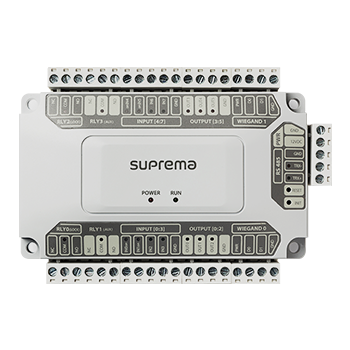

DM-20
