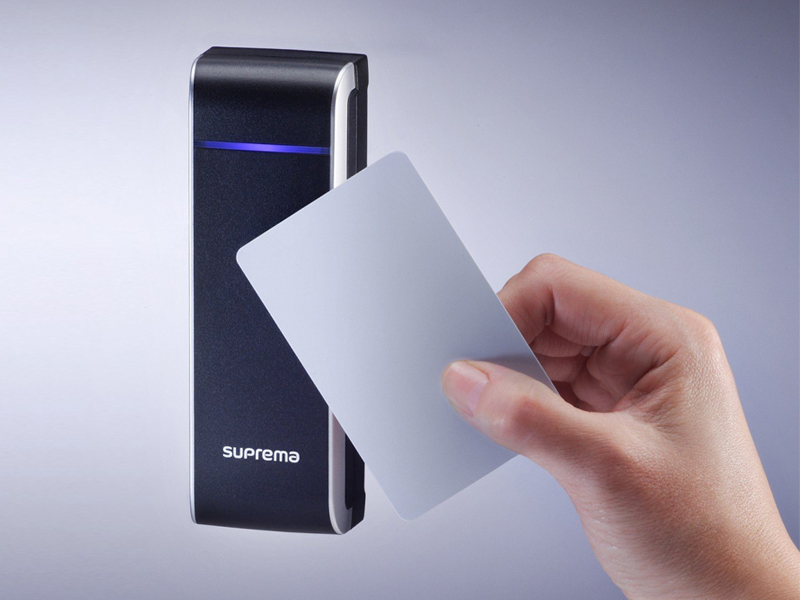

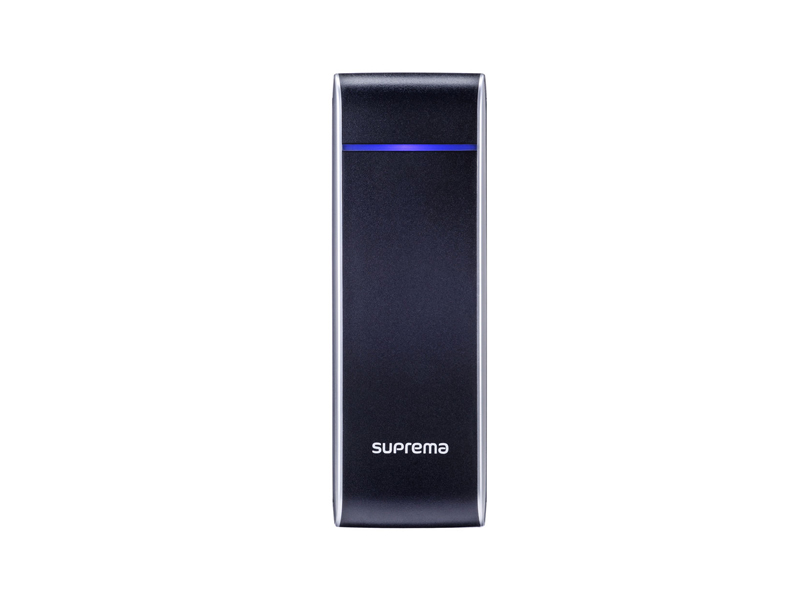

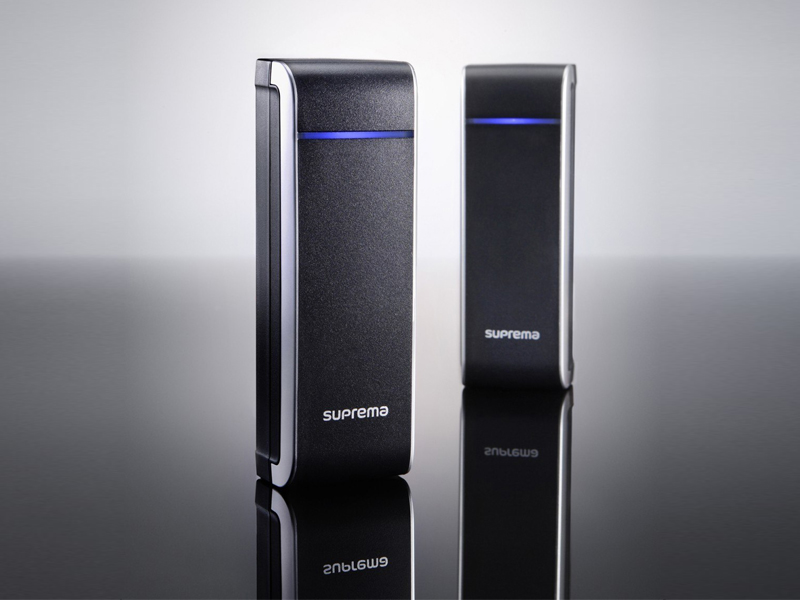

X-Pass

Xpass is a smart IP based access control unit providing high-level security for small-to-medium sized systems to larger enterprise-level systems. Featuring next generation IP access control system structure, Xpass act as a smart reader and controller with distributed intelligence concept. With its RS485 and Wiegand interfaces, it can also fit in your legacy systems. Xpass is fully compatible with Suprema’s BioStar systems, offering extra flexibility of biometric IP access control systems to meet different needs and requirements.

Features
  • TCP/IP & Network interfaces
    IP enabled distributed access control system by ethernet (DHCP or static IP) and RS485 interfaces
  • Power over Ethernet (POE)
    communication and power over a simple CAT5 or 6 cable/supplies up to 600mA of 12Vdc to locking devices
  • Enterprise-level access control capacity
    controls up to 40,000 users, 128 time schedules, 128 access groups and 64 zones
  • IP65 weatherproof structure
    rugged structure for outdoor installation, operates between -20℃ ~ 50℃
  • Easier installation & operation
    direct lock relay and Wiegand connection/ command card operation (add/delete users)
  • Sleek & aesthetic design
    slim and sleek size for narrow door frames/ multi-color LED & buzzer for indication
Configuration

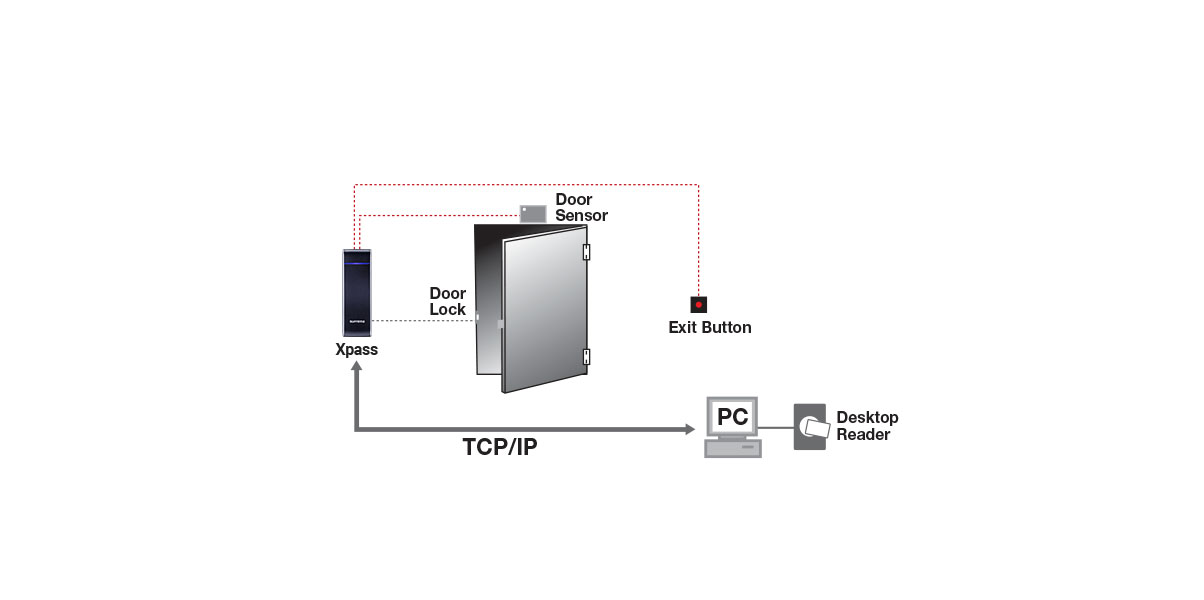

Standalone

Standalone-Secure

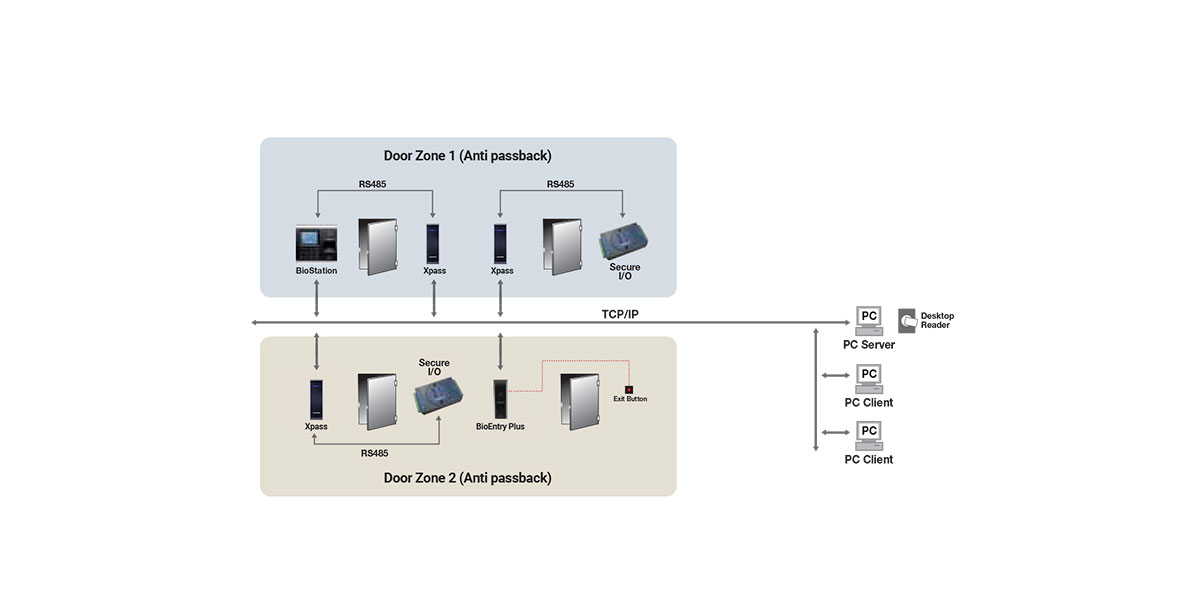

Distributed Access Control Systems

Specification
Model Name XPE-PoE XPM-PoE XPH-PoE
RFID RF Option 125 kHz EM 13.56 MHz MIFARE, DESFire/EV1 (CSN) 125 kHz HID Prox
Mobile Card Not supported Not supported Not supported
Protections Ingress Protection IP65 IP65 IP65
Vandal Proof Not supported Not supported Not supported
Capacity (RFID) Users (1:1) 40,000 40,000 40,000
Users (1:N) 40,000 40,000 40,000
Templates (1:1) Not supported Not supported Not supported
Templates (1:N) Not supported Not supported Not supported
Text Log 50,000 50,000 50,000
Image Log 5,000 5,000 5,000
HW CPU 533MHz DSP 533MHz DSP 533MHz DSP
Memory 16MB RAM + 8MB Flash 16MB RAM + 8MB Flash 16MB RAM + 8MB Flash
LCD Type Not supported Not supported Not supported
LED Multiple colors Multiple colors Multiple colors
Sound Multi-tone Buzzer Multi-tone Buzzer Multi-tone Buzzer
Operating Temperature -20° to 50°C -20° to 50°C -20° to 50°C
Storage Temperature -40°C ~ 70°C -40°C ~ 70°C -40°C ~ 70°C
Operating Humidity 0% ~ 80%, non-condensing 0% ~ 80%, non-condensing 0% ~ 80%, non-condensing
Storage Humidity 0% ~ 90%, non-condensing 0% ~ 90%, non-condensing 0% ~ 90%, non-condensing
Weight Device: 142g, Bracket: 27g (including washers and bolts) Device: 142g, Bracket: 27g (including washers and bolts) Device: 142g, Bracket: 27g (including washers and bolts)
Dimension (WxHxD, mm) 45 x 130 x 27 45 x 130 x 27 45 x 130 x 27
Tamper Supported Supported Supported
Interface Wi-Fi Not supported Not supported Not supported
Ethernet 10/100 Mbps, auto MDI/MDI-X 10/100 Mbps, auto MDI/MDI-X 10/100 Mbps, auto MDI/MDI-X
RS-485 1ch Host or Slave (Selectable) 1ch Host or Slave (Selectable) 1ch Host or Slave (Selectable)
Wiegand 1ch In or 1ch Out (Selectable) 1ch In or 1ch Out (Selectable) 1ch In or 1ch Out (Selectable)
TTL Input 2 Inputs 2 Inputs 2 Inputs
Relay 1 Relay 1 Relay 1 Relay
USB Not supported Not supported Not supported
SD Card Not supported Not supported Not supported
PoE Optional Optional Optional
Intercom Not supported Not supported Not supported
Electrical Power 12VDC 12VDC 12VDC
