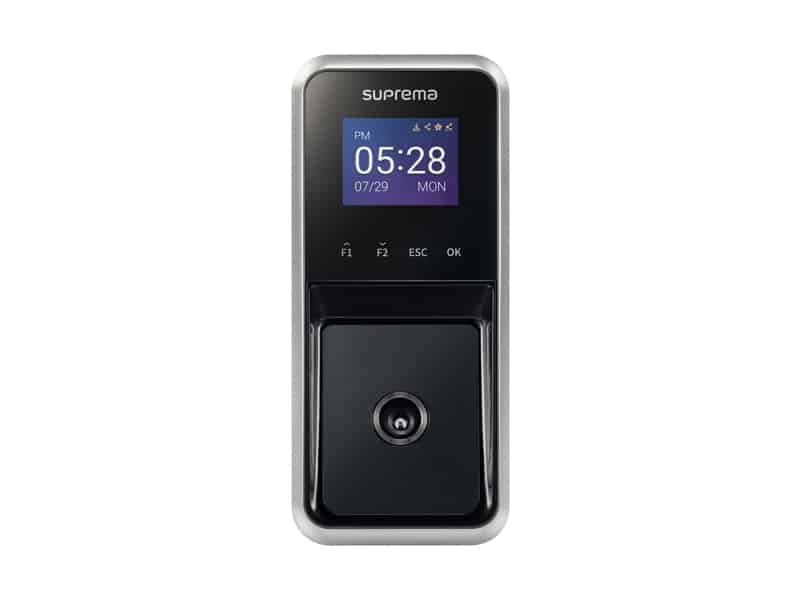

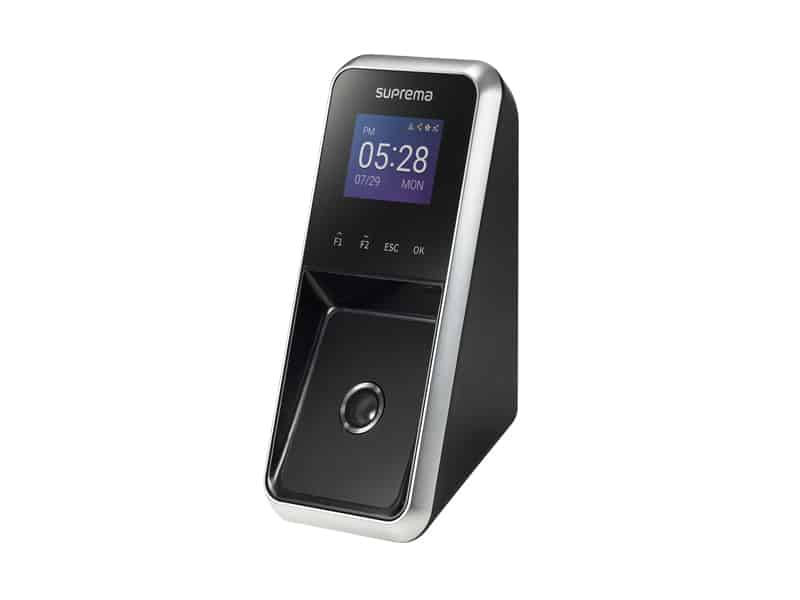

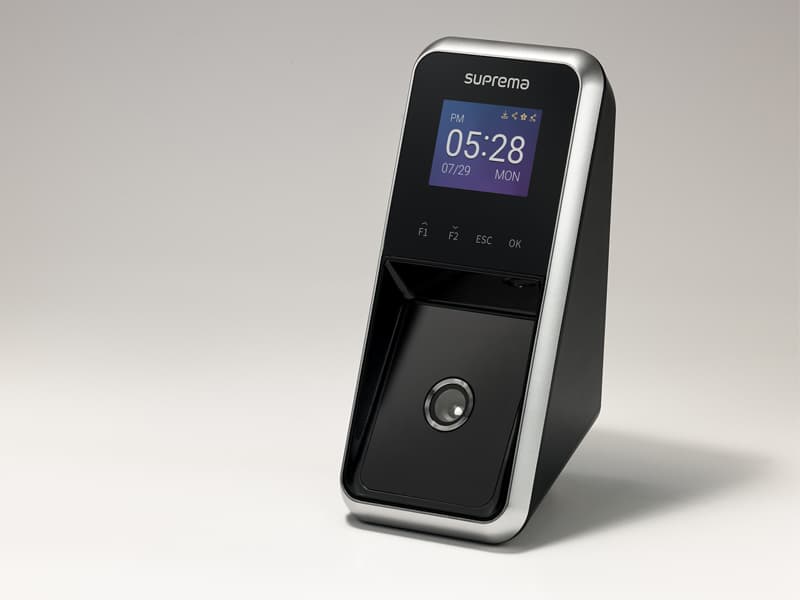

FaceLite

Suprema FaceLite is the most compact face recognition terminal providing loads of the world’s best features. Powered by Suprema’s latest innovation in facial biometrics, FaceLite offers unrivaled matching speed, accuracy, and level of security. With Suprema’s patented optic engineering, FaceLite achieves up to 25,000 lx of operating illuminance which in turn, brings all-around confidence regardless of lighting conditions. Packed in a compact and an ergonomically-designed structure, FaceLite provides exceptional performance and usability for diverse access control and time attendance sites, large or small.

Features
  • Day and night with confidence.

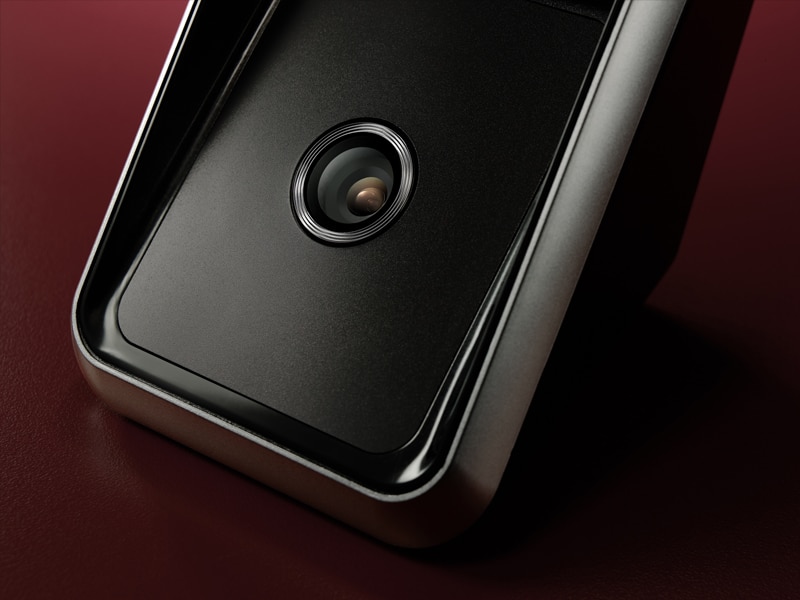

    FaceLite uses Suprema’s patented optical technology designed to adapt to the environment, enabling accurate authentication in the midday (up to 25,000 lx) or midnight (0 lx).
  • Smart place for your smart card.
    With BioStar 2 Mobile Card, now your smarphone is an smart card.
  • All your cards. All in one device.
    Featuring dual-frequency RFID technology, FaceLite supports most types of RFID card standards with a single device including 125kHz EM and 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa, NFC and 2.4GHz BLE.
  • Security and privacy protection.

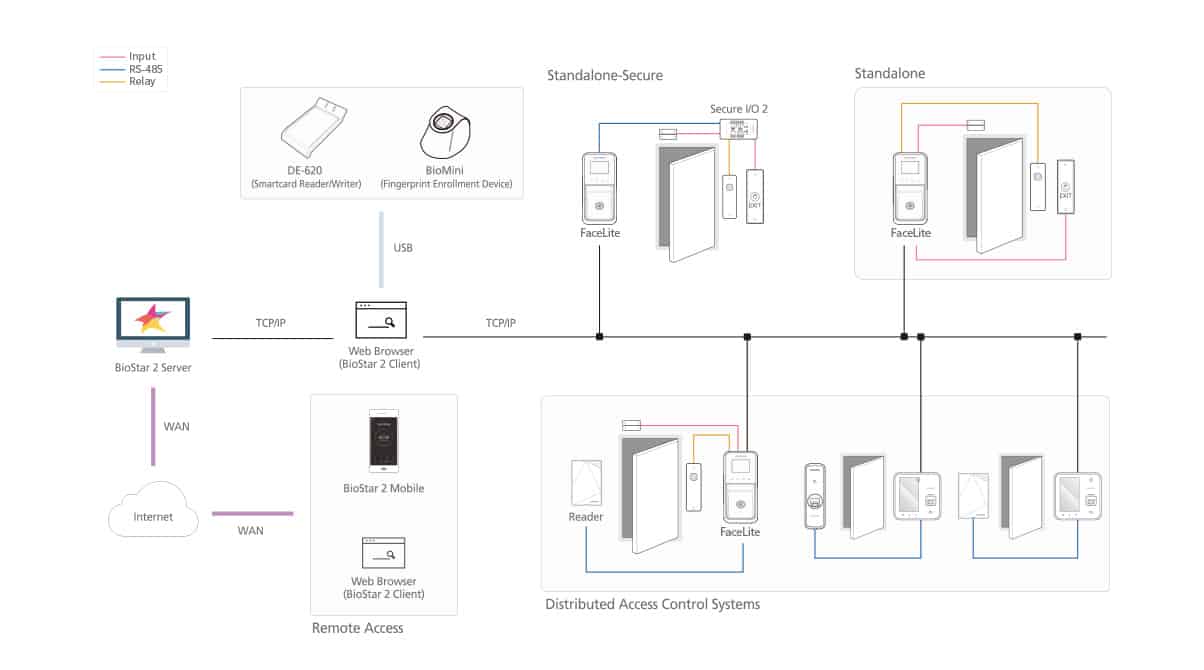

Configuration

Specifications
Model Name FL-DB
RFID RF Option 125kHz EM & 13.56MHz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
Mobile Card NFC, BLE
Protections Ingress Protection Not supported
Vandal Proof Not supported
Face Template SUPREMA
Extractor / Matcher SUPREMA
Live Face Detection Supported
Capacity (Face) Users (1:1) * Based on one face enrollment per user 30,000
Users (1:N) * Based on one face enrollment per user 3,000
Max. Face per User 5
Text Log 5,000,000
Image Log Not supported
HW CPU 1.2GHz Quad Core
Memory 8GB Flash + 1GB RAM
LCD Type 2” color TFT LCD
LED Not supported
Sound 24 bit Voice DSP (echo cancellation)
Operating Temperature -20°C ~ 50°C
Storage Temperature -40°C ~ 70°C
Operating Humidity 0% ~ 80%, non-condensing
Storage Humidity 0% ~ 90%, non-condensing
Weight Device: 296g Bracket: 41g (Including washer and bolt)
Dimension (WxHxD, mm) 80 x 160.3 x 71.8
Tamper Supported
Interface Ethernet 10/100 Mbps, auto MDI/MDI-X
RS-485 1ch Host or Slave (Selectable)
Wiegand 1ch Input or Output (Selectable)
TTL Input 2ch Inputs
Relay 1 Relay
USB Supported
SD Card Not Supported
PoE Not Supported
Intercom Not Supported
Electrical Power DC 24V
Accessory

Peripheral Device
Compact Secure Single Door I/O Module
Secure I/O 2
Multiple Output Extension Module
OM-120
Secure Multi Door I/O Module
DM-12
