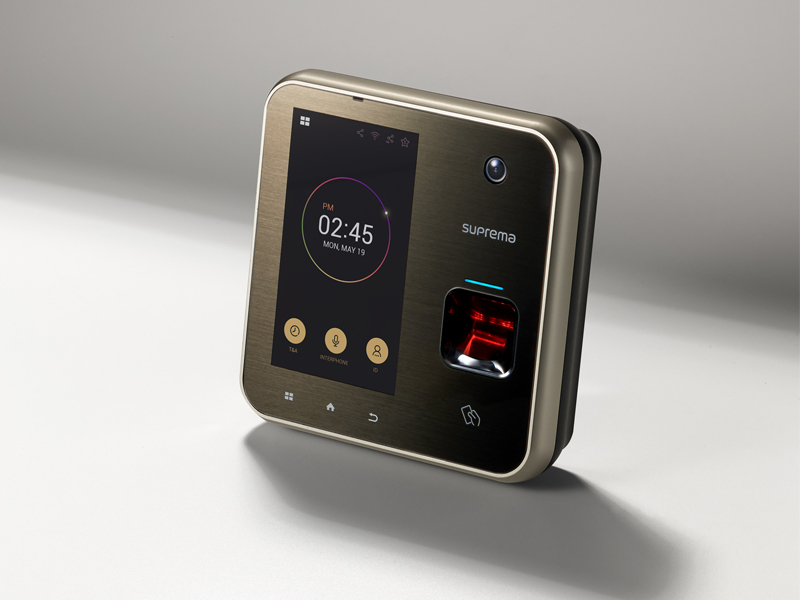

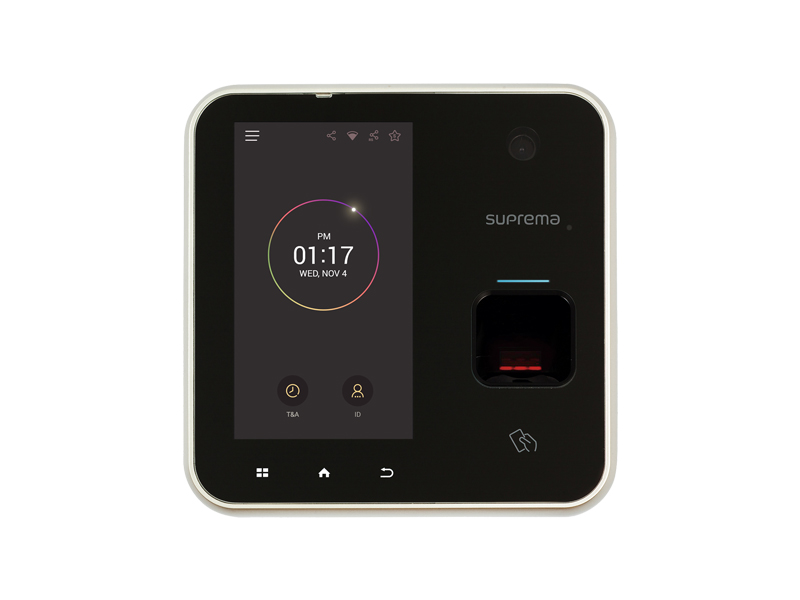

BioStation A2

Fingerprint Access Control and Time Attendance Terminal

Suprema BioStation A2 is the most advanced fingerprint access control and time attendance terminal featuring Suprema’s next generation biometric technology and security platform. BioStation A2 provides class leading performance through World’s best matching performance, uncompromised security and accuracy along with top-notch usability. Preloaded with BioStar 2, BioStation A2 operates as a web server which offers extra flexibility in system design for sites large or small.

Features
  • World’s Fastest Performance
    • Powered by 1GHz iMX6 Quad-core CPU
    • Up to 150,000 matches per second (1:N)
    • Data transfer speed up to 5,000 users/min
  • Improved Accuracy & Security
    • Up to 5x enhanced recognition performance
    • New advanced LFD(live finger detection) technology
    • Improved optical sensor and algorithm
  • Expanded Capacity
    • Max. 500,000 users
    • 5mil text logs/50,000 image logs
    • Large memory: 1GB RAM+ 8GB Flash
  • Best-in-class Features
    • 5” IPS LCD touchscreen with reinforced glass front
    • 2MP wide-angle camera for clear face image logs
    • Android O/S with improved GUI
    • Videophone support/Extensive RF card options
  • Versatile Interfaces
    • TCP/IP, Wi-Fi, PoE(IEEE802.3af)
    • USB host/OTG, SD card
    • Wiegand, RS485, TTL I/O. relay
Configuration

Specification
Model Name BSA2-OEPW BSA2-OHPW BSA2-OIPW BSA2-OMPW
RFID RF Option 125kHz EM 125kHz HID Prox 13.56MHz iCLASS SE/SR/Seos 13.56Mhz MIFARE, MIFARE Plus, DESFire/EV1, FeliCa
Mobile Card Not supported Not supported NFC NFC
Protections Ingress Protection Not supported Not supported Not supported Not supported
Vandal Proof Not supported Not supported Not supported Not supported
Fingerprint Template SUPREMA / ISO 19794-2 / ANSI 378 SUPREMA / ISO 19794-2 / ANSI 378 SUPREMA / ISO 19794-2 / ANSI 378 SUPREMA / ISO 19794-2 / ANSI 378
Extractor / Matcher MINEX certified and compliant MINEX certified and compliant MINEX certified and compliant MINEX certified and compliant
Live Fingerprint Detection Supported Supported Supported Supported
Capacity (Fingerprint) Users (1:1)
* Based on one finger enrollment per user		 500,000 500,000 500,000 500,000
Users (1:N)
* Based on one finger enrollment per user		 100,000 100,000 100,000 100,000
Max. Finger per User 10 10 10 10
Text Log 5,000,000 5,000,000 5,000,000 5,000,000
Image Log 50,000 50,000 50,000 50,000
HW CPU 1.0 GHz Quad Core 1.0 GHz Quad Core 1.0 GHz Quad Core 1.0 GHz Quad Core
Memory 8GB Flash + 1GB RAM 8GB Flash + 1GB RAM 8GB Flash + 1GB RAM 8GB Flash + 1GB RAM
LCD Type 5” color TFT LCD 5” color TFT LCD 5” color TFT LCD 5” color TFT LCD
LED Multiple colors Multiple colors Multiple colors Multiple colors
Sound 24 bit/Voice DSP (echo cancellation) 24 bit/Voice DSP (echo cancellation) 24 bit/Voice DSP (echo cancellation) 24 bit/Voice DSP (echo cancellation)
Operating Temperature -20°C ~ 50°C -20°C ~ 50°C -20°C ~ 50°C -20°C ~ 50°C
Storage Temperature -40°C ~ 70°C -40°C ~ 70°C -40°C ~ 70°C -40°C ~ 70°C
Operating Humidity 0% ~ 80%, non-condensing 0% ~ 80%, non-condensing 0% ~ 80%, non-condensing 0% ~ 80%, non-condensing
Storage Humidity 0% ~ 90%, non-condensing 0% ~ 90%, non-condensing 0% ~ 90%, non-condensing 0% ~ 90%, non-condensing
Weight Device: 440g, Bracket: 89g (Including washer and bolt) Device: 440g, Bracket: 89g (Including washer and bolt) Device: 440g, Bracket: 89g (Including washer and bolt) Device: 440g, Bracket: 89g (Including washer and bolt)
Dimension (WxHxD, mm) 155 x 155 x 40 155 x 155 x 40 155 x 155 x 40 155 x 155 x 40
Tamper Supported Supported Supported Supported
Interface Wi-Fi Built-in, IEEE 802.11 b/g Built-in, IEEE 802.11 b/g Built-in, IEEE 802.11 b/g Built-in, IEEE 802.11 b/g
Ethernet 10/100 Mbps, auto MDI/MDI-X 10/100 Mbps, auto MDI/MDI-X 10/100 Mbps, auto MDI/MDI-X 10/100 Mbps, auto MDI/MDI-X
RS-485 1ch Host or Slave (Selectable) 1ch Host or Slave (Selectable) 1ch Host or Slave (Selectable) 1ch Host or Slave (Selectable)
Wiegand 1ch Input, 1ch Output 1ch Input, 1ch Output 1ch Input, 1ch Output 1ch Input, 1ch Output
TTL Input 2ch Inputs 2ch Inputs 2ch Inputs 2ch Inputs
Relay 2 Relays 2 Relays 2 Relays 2 Relays
USB USB 2.0 (Host) USB 2.0 (Host) USB 2.0 (Host) USB 2.0 (Host)
SD Card microSD card (Supports up to 32GB) microSD card (Supports up to 32GB) microSD card (Supports up to 32GB) microSD card (Supports up to 32GB)
PoE IEEE 802.3af compliant IEEE 802.3af compliant IEEE 802.3af compliant IEEE 802.3af compliant
Intercom Supported Supported Supported Supported
Electrical Power DC 12V DC 12V DC 12V DC 12V
Peripheral Device
Compact Secure Single Door I/O Module
Secure I/O 2
Multiple Output Extension Module
OM-120
Secure Multi Door I/O Module
DM-12
